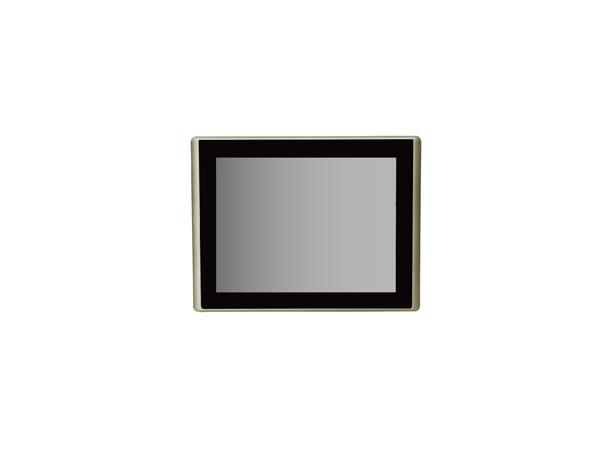

ARCHMI-807H 7" 1000nits Panel PC

Aplex/N2930 2,1GHz/4GB/Res.Touch

Product nr: 120730
ARCHMI-807H 7" 1000nits Panel PC Aplex/N2930 2,1GHz/4GB/Res.Touch
Specifications
System
CPUOnboard Intel Celeron N2930(1.83GHz) Processor
System ChipsetSoC
System MemoryOnboard 4GB DDR3L 1600 MHz/8GB(option)
External I/O
USB2 x USB 3.0 type A
Serial / Parallel1 x RS-232 DB-9(COM2)1 x DB-9 RS-232/422/485 (Default RS-232)(COM1)
Audio1 x Phone Jack Line-out
LAN2 x GbE RJ-45
Power3 Pins Terminal Block Connector DC Power Input, 1 x 2-Pin DC Power Switch Connector
Storage Space
HDD1 x SATA MO-297 SSD bay (Easy Accessible)
Movable device1 x SD card slot, up to 32GB
Expansion
On board expansion bus1 x Internal Mini-PCIe slot full size
Display
LCD Size7" TFT-LCD
Max. resolution800 x 480
Max. color262K
Luminance(cd/m²)1000
Viewangle(H°/V°)140/130
Backlight lifetime(hrs)50000
Touch Screen(Option)
Touch TypeResistive Touch Window
InterfaceUSB
Light transmission(%)80%
Power
Power input9~36V DC
Mechanical
ConstructionAluminum Die-casting Front Bezel and Chassis
IP ratingIP65 Compliant Front Bezel
MountingPanel mounting, VESA 75 x 75
Dimension(mm)202 x 149 x 40
Net weight(Kgs)1.2
Enviroment
Operating temperature(°C)0~50°C
Storage temperature(°C)-20~60°C
Storage humidity10 to 90% @ 40°C, non- condensing
CertificationCE/FCC class A/UL
Operating System Support
Windows Embedded Compact 7, Windows Embedded Standard 7, Windows 7 Pro(FES), Windows 7 Ultimate(FES), Windows Embedded 8 Standard, Windows Embedded 8.1 Industry Pro, Windows 10 IoT Enterprise 2015LTSB
Ordering Information
Order NoDescription
