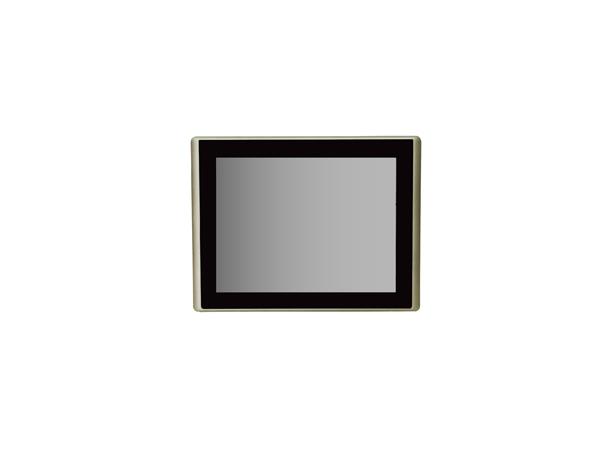

ARCHMI-817H 17" 1000nits Panel PC

Aplex/ N2930 2,1GHz/4GB/Res.Touch

Product nr: 122030
109648
Specifications
System
CPUOnboard Intel Celeron N2930(1.83GHz) Processor
System ChipsetSoC
System MemoryOnboard 4GB DDR3L 1600 MHz/8GB(option)
Power ConsumptionMAX: 22.1W
External I/O
USB2 x USB 3.0 type A
Serial / Parallel1 x RS-232 DB-9(COM2)1 x DB-9 RS-232/422/485 (Default RS-232)(COM1)
Audio1 x Audio Line Out
LAN2 x GbE LAN RJ-45
Power1 x 3-pin DC Power input terminal 1 x 2-pin connector for power on/off button
Storage Space
HDD1 x SATA 2.5" HDD bay for SATA HDD(Easy Accessible)
Movable device1 x SD card slot, up to 32GB
Expansion
On board expansion bus1 x Internal Mini-PCIe slot full size
Display
LCD Size17" TFT-LCD
Max. resolution1280 x 1024
Max. color16.7M
Luminance(cd/m²)1000
Viewangle(H°/V°)170/160
Backlight lifetime(hrs)50000
Touch Screen(Option)
Touch TypeResistive Touch
InterfaceUSB
Light transmission(%)80%
Power
Power input9~36V DC
Mechanical
ConstructionAluminum Die-casting Front Bezel and Chassis
IP ratingIP65 Compliant Front Bezel
MountingPanel mounting, VESA 100 x 100
Dimension(mm)439 x 348 x 64.8
Net weight(Kgs)5.1
Enviroment
Operating temperature(°C)0~50°C
Storage temperature(°C)-20~60°C
Storage humidity10 to 90% @ 40°C, non- condensing
CertificationCE/FCC class A
Operating System Support
Windows Embedded Compact 7, Windows Embedded Standard 7, Windows 7 Pro(FES), Windows 7 Ultimate(FES), Windows Embedded 8 Standard, Windows Embedded 8.1 Industry Pro, Windows 10 IoT Enterprise 2015LTSB
Ordering Information
Order NoDescription
Optional? 2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1
? 2 x CAN bus via TB-528CAN2
? 2 x USB 2.0 type A via TB-528U2
? 2 x USB 2.0 type A + 1 x RS-232 DB-9 + 1 x Power button via TB-528C1U2P1
? UPS Battery 21W/10.8V/1.95Ah
Dimension
