CPU	Intel® Core™ i5-7300U 2.6 GHz Intel® Celeron® 3965U 2.2 GHz
Chipset	SoC integrated
System Memory	1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB
BIOS	AMI
COM	2 x RS-232/422/485
USB	2 x USB 3.0 2 x USB 2.0
Ethernet/PoE	2 x 10/100/1000 Mbps Ethernet (Intel® i219-LM, Intel® i211-AT)
Display	1 x DisplayPort ++
Digital I/O	N/A
Audio	N/A
Storage	1 x M.2 Key B 2242 (for SATA storage)
Expansion	1 x M.2 Key E 2230 (for Wi-Fi)
Others	1 x ATX power switch 1 x AT/ATX quick switch 1 x Screw type VDC power input connector 2 x Antenna opening
Power Supply	12 VDC
Watchdog Timer	65535 levels, 1 to 65536 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-10°C to +50°C (+14°F to +122°F) (with W.T. SSD/DRAM)
Relative Humidity	10% to 90%, non-condensing
Vibration	IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock	IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Dimensions (W x D x H)	142 x 87 x 58 mm (5.59" x 3.42" x 2.28")
Weight (net/gross)	0.6 kg (1.32 lb)/1.5 kg (3.3 lb)
Certifications	CE, FCC Class A
EOS Support	Win 10 IoT, Linux
Software Support	AMS.AXView
Mounting	Wall mount kit Din-rail kit VESA mount Kit

Number of articles found:

Teollisuustietokoneet

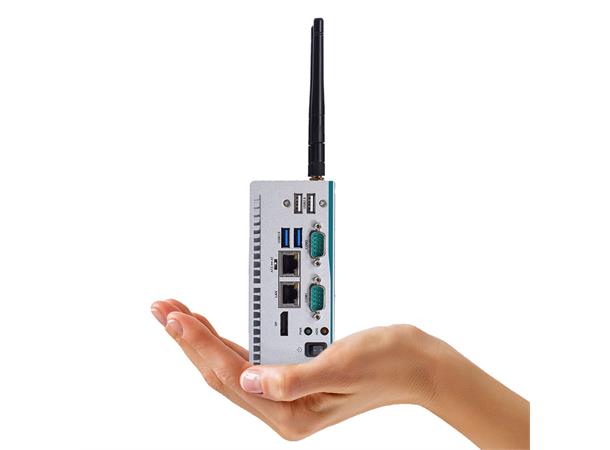

eBOX100-51R-FL-DC-7300U

Core i5-7300U/12VDC

Product nr: 128387

CPU	Intel® Core™ i5-7300U 2.6 GHz Intel® Celeron® 3965U 2.2 GHz
Chipset	SoC integrated
System Memory	1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB
BIOS	AMI
COM	2 x RS-232/422/485
USB	2 x USB 3.0 2 x USB 2.0
Ethernet/PoE	2 x 10/100/1000 Mbps Ethernet (Intel® i219-LM, Intel® i211-AT)
Display	1 x DisplayPort ++
Digital I/O	N/A
Audio	N/A
Storage	1 x M.2 Key B 2242 (for SATA storage)
Expansion	1 x M.2 Key E 2230 (for Wi-Fi)
Others	1 x ATX power switch 1 x AT/ATX quick switch 1 x Screw type VDC power input connector 2 x Antenna opening
Power Supply	12 VDC
Watchdog Timer	65535 levels, 1 to 65536 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-10°C to +50°C (+14°F to +122°F) (with W.T. SSD/DRAM)
Relative Humidity	10% to 90%, non-condensing
Vibration	IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock	IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Dimensions (W x D x H)	142 x 87 x 58 mm (5.59" x 3.42" x 2.28")
Weight (net/gross)	0.6 kg (1.32 lb)/1.5 kg (3.3 lb)
Certifications	CE, FCC Class A
EOS Support	Win 10 IoT, Linux
Software Support	AMS.AXView
Mounting	Wall mount kit Din-rail kit VESA mount Kit
