Teollisuustietokoneet

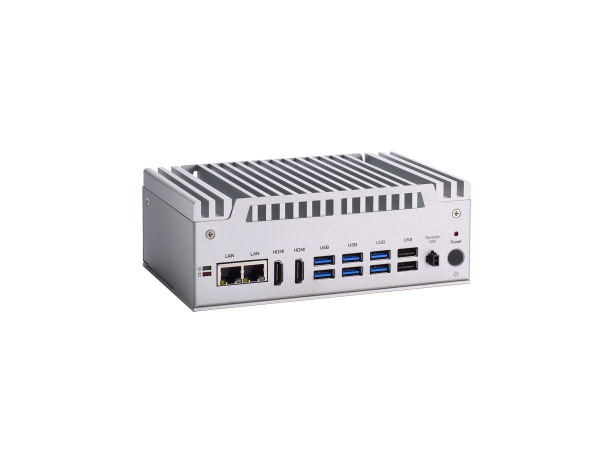

eBOX570 Fanless BoxPC

intel i5-1335UE, R680E, LGA1700

Product nr: 137486

CPU	Intel® Core™ Core™ i5-1335UE (can be upgraded to i7-1365UE)
Chipset	SoC integrated
System Memory	1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
BIOS	AMI
COM	2 x RS-232/422/485
USB	4 x USB 3.2 Gen2x1 (10G) type A 2 x USB 3.2 Gen1x1 (5G) type A 2 x USB 2.0
Ethernet/PoE	1 x 10/100/1000 Mbps (Intel® I210-IT) 1 x 10/100/1000 Mbps (Intel® I219-LM, supporting Intel® AMT)
Display	2 x Lockable HDMI 1.4b @30Hz with 4096 x 2160 resolution
Digital I/O	N/A
Audio	N/A
Storage	1 x M.2 Key M 2280 socket (for NVMe storage with PCIe x4 Gen3 or SATA signal, selectable through the BIOS)
Expansion	1 x Full-size PCI Express Mini Card with SIM slot 1 x M.2 Key E 2230 slot (for Wi-Fi)
Others	1 x Power button 1 x Reset switch connector 1 x Remote switch 2 x Antenna Opening TPM 2.0
Power	12 VDC
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminum extrusion heavy-duty cold-rolled steel
Operating Temperature	-20°C to +60°C (-4°F to +140°F) (with W.T. DRAM & SSD, CPU TDP 15W)
Relative Humidity	10% to 95%, non-condensing
Vibration	IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock	IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Dimensions (W x D x H)	120 x 178 x 65 mm (4.72" x 7.01" x 2.56")
Weight (net/gross)	2 kg/2.5 kg
Certifications	CE (EN 61000-6-4/EN 61000-6-2), FCC Class A, UKCA
EOS Support	Win 11 IoT, Linux
Software Support	N/A
Mounting	Wall mount kit DIN-rail kit VESA mount kit
