Physical Port
- One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
- Two 10G/2.5G/1G/100BASE-X SFP+ interface
- Supports IEEE802.3bt PoE++ standard
IEEE 802.3bt Power over Ethernet
- Compliant with IEEE 802.3bt Type-4 PoE++ standard
- Backward compatible with IEEE 802.3af/at PD device

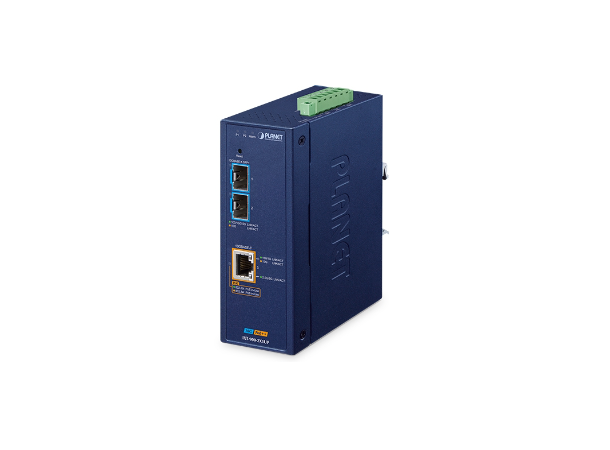

- The RJ45 port on the IXT-900 2X1UP delivers a maximum power output of 95 watts, which is also the maximum PoE budget the device can provide.
- Detects powered devices (PD) automatically.
- Power feeding up to 100m
- PoE management features
- PoE admin-mode control
- PoE port power limit
- PD classification detection
- Intelligent PoE features
- Temperature threshold setting
- PoE usage threshold setting
- PD alive check
- PoE schedule
Layer 2 Features
- Storm Control support
- Broadcast / Multicast / Unknown Unicast
- Supports VLAN
- IEEE 802.1Q tagged VLAN
- Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
- Up to 256 VLAN groups, out of 4096 VLAN IDs
- Supports ITU-T G.8032 ERPS ring with recovery time less than 500ms (software-based)
- Link Layer Discovery Protocol (LLDP)
- 16K MAC address table with auto-aging
- Jumbo Frame support up to 9K in size
Quality of Service
- Ingress Shaper and Egress Rate Limit per port bandwidth control
- 8 priority queues on all converter ports
- Strict priority and Weighted Round Robin (WRR) CoS policies
- Traffic classification
- IEEE 802.1p CoS
- IP TOS / DSCP / IP Precedence
- IP TCP/UDP port number
- Typical network application
Management
- IPv4 and IPv6 dual stack management
- Supports Link Fault Pass-through
- Supports Link Fault PoE Pass-through
- Management Interfaces
- Web HTTP/HTTPS management
- Telnet Command Line Interface
- SNMPv1, v2c, v3 monitoring
- SSHv2, TLSv1.2
- System Maintenance
- Firmware upload/download via HTTP
- Reset button for system reboot or reset to factory default
- Dual images
- Simple Network Time Protocol (SNTP)
- User privilege levels control
- SNMP Management
- SNMP trap for interface link up and link down notification
- Four RMON groups (history, statistics, alarms and events)
- Network Diagnostic
- SFP-DDM (Digital Diagnostic Monitor)
- Syslog remote alarm
- Local system Log
- ICMPv6 / ICMPv4 remote ping
- PLANET Smart Discovery Utility for convenient deployment
- PLANET Remote Management
- PLANET NMS Controller and CloudViewerPro app for
central management
Security
- IP address access management to prevent unauthorized intruder
- Static MAC setting and MAC Filtering
- Protected ports
Case and Installation
- Dual 12~54VDC external power supply
- -40 to 75°C operating temperature
- Supports 4KVDC Contact / 8KVDC Air Ethernet ESD protection
- Wall-mount and DIN-rail installation
