See Eyes SC-IPC07PU

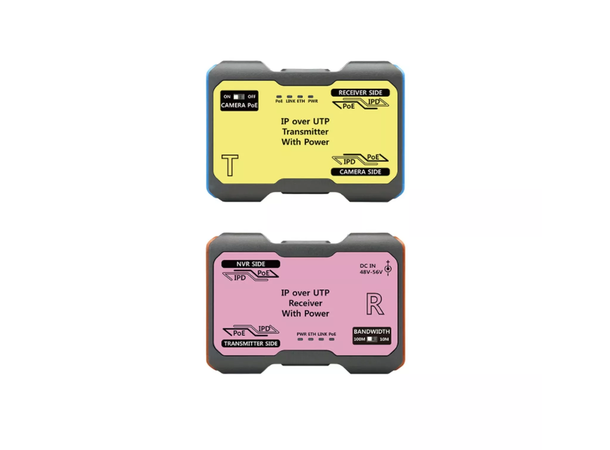

SC-IPC07PU, consisting of SC-IPT07PU(1-ch transmitter) and SC-IPR07PU(1-ch receiver), transmits Ethernet data and power via a UTP cable. Its built-in power supply functio(IEEE802.3at) operates the transmitter(SC-IPT07PU) and the PoE camera from the receiver(SC-IPR07PU) without separate power lines. It compensates for the short distance of a conventional network system by transmitting Ethernet data over long distances

Features

• Transmission of 'Ethernet data + power (PoE)' via a UTP cable
• Enabling the power supply (PoE) of a PoE camera (~30W)
• Ethernet data transmission up to 500m via Cat.5e (based on 100Mbps, Full Duplex)
• Ethernet data transmission up to 800m via Cat.5e (based on 10Mbps)
• Built-in 10/100Mbps bandwidth switch (expansion switch) to optimize the transmission bandwidth according to distance
  • 100Mbps: max.500m (Cat.5e)
  • 10Mbps: max.800m (Cat.5e)
• PoE ON/OFF switch mounted on the transmitter (SC-IPT07PU)
• Inexpensive solution by keeping existing UTP cables
• Reduction of construction costs and time without separate power lines
• Autodiagnostic function for stable power supply
• MULTICAST is supported
• Compact size for easy installation (wall brackets included)
• Built-in surge protection circuit
