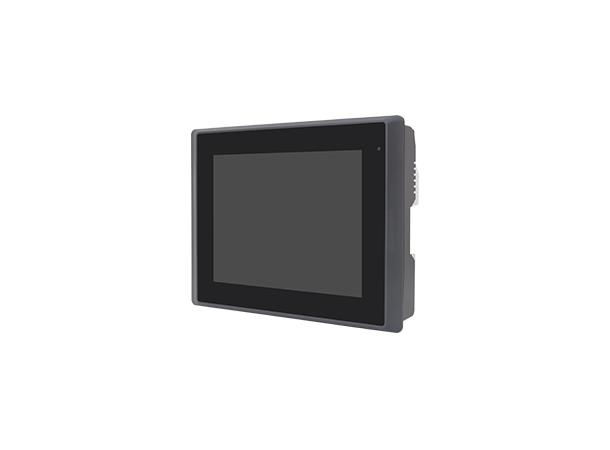

ADP-1080AT 8" Touch monitor

Aplex/VGA+DVI/9-36VDC+AC/Res.touch

Product nr: 120810
117361
Specifications
IO Port
VGA1
DVI1
OSD Control MembraneOSD keypad on the rear side
Power1 x 3-pin TB for DC 9~36V Input
Display
LCD Size8" TFT-LCD
Max. resolution800 x 600
Max. color262K
Luminance(cd/m²)350
Viewangle(H°/V°)140/135
Contrast500:1
Backlight lifetime(hrs)40000
Touch Screen(Option)
Touch TypeResistive Touch Window / Projected Capacitive Touch
InterfaceUSB Default (RS-232 Option)
Light transmission(%)Resistive Touch Window Over 80%, Projected Capacitive Touch Over 90%
Power
Power input9~36V DC / MAX: 5W
Mechanical
ConstructionPlastic Housing
IP ratingFront IP65
MountingPanel Mount, VESA 75 x 75
Dimension(mm)231.1 x 176.1 x 45
Net weight(Kgs)1
Enviroment
Operatiing temperature(°C)0~50°C
Storage temperature(°C)-20~60°C
Storage humidity10 to 90% @ 40°C, non- condensing
CertificationCE/FCC class A
Ordering Information
Order NoDescription
ADP-1080AT-P18" 800*600 SVGA, Front IP65 Industrial Display with Resistive touch screen, VGA/DVI input, 9~36V DC power input only with Adapter, plastic enclosure
ADP-1080AT-P28" 800*600 SVGA, Front IP65 Industrial Display with Projected Capacitive touch screen, VGA/DVI input, 9~36V DC power input only with Adapter, plastic enclosure
Dimension
