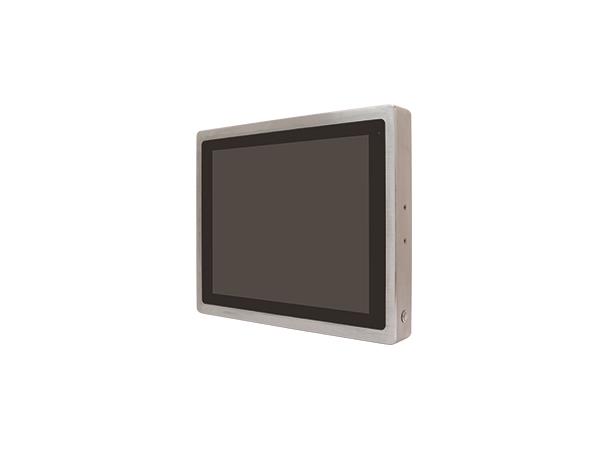

ViTAM-819R 19" IP66/IP69K Stainless

Aplex/N2930/4GB/32GB SSD/Res. touch

Product nr: 121423
CPU Onboard Intel Celeron N2930(1.83GHz) Processor
System Chipset SoC
System Memory Onboard 4GB DDR 3L 1600 MHz/8GB (optional)
Power Consumption TBD
USB 1 x M12 8-pin for USB 2.0 with waterproof cover and chain
Serial / Parallel 1 x M12 8pin for COM 1, RS-232/422/485, Default RS-232, with waterproof cover and chain
LAN 1 x M12 8pin for LAN with waterproof cover and chain
Power 1 x M12 3pin DC Power with waterproof cover and chain / 1 x Power Switch on the rear side / 1 x Touch on/off button on the side
Storage Space
HDD 1 x 2.5" HDD/SSD
Movable device 1 x SD slot
Expansion slot 1 x Mini PCIe slot for WIFI/BT (optional)
LCD Size 19" TFT-LCD
Max. resolution 1280 x 1024
Max. color 16.7M
Luminance(cd/m²) 350
Viewangle(H°/V°) 170/165
Contrast 1000:1
Backlight lifetime(hrs) 50000
Touch Screen(Option)
Touch Type Resistive Touch
Interface USB
Light transmission(%) Over 80%
Power input 9~36V DC
Construction Stainless steel enclosure
IP rating IP66 / IP69K
Mounting VESA 100 x 100, Yoke mount
Dimension(mm) 470 x 388.6 x 60
Net weight(Kgs) 9.5 Kg
Operating temperature(°C) 0~50°C
Storage temperature(°C) -30~70°C
Storage humidity 10 to 90% @ 40°C, non- condensing
Certification CE / FCC CLASS A
Operating System Support Windows 7 Embedded Enterprise, Windows Embedded Standard 7, Windows Embedded 8.1 Pro, Windows Embedded 8.1 Industry Pro, Windows 10 IoT 2016
Ordering Information
Order No Description
ViTAM-819R-01 19"/1280x1024/S.S./N2930/4G/32GMLCSSD/RT/9~36V/w ADP
Option ?RFID module design on the front side
2 x blank M12 connectots with W.F. cover & chain for selecting 2 options below:
?2 x USB 2.0 via TB-528U2 ?1 x USB 3.0 via cable ?1 x LAN via cable ?1 x COM Port via TB-528C1 ?1 x CAN via TB-528CAN2
