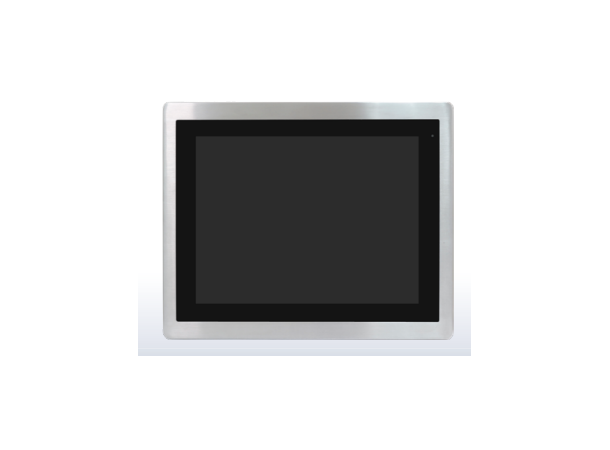

Aplex ViTAM-812BP

12,1" IP66/IP69K Rated PanelPC with Stanless Steel chassi and a True Flat Front Bezel Design.
Grade 304 Stainless Steel Enclosure (Optional Grade 316)

Specification

System
CPU: intel Celeron J6412 2.0GHz Onboard processor
Memory: 1x260-pin SO-DIMM up to 32GB DDR4 3200 MHz
TPM: TPM 2.0

IO Ports
1xM12 8-pin for USB2.0 with waterproof cover
1xM12 8-ping for COM1, RS232/422/485, default RS232, with waterproof cover
1xM12 8-pin for LAN with waterproof cover
1x Touch on/off button on the side
1xM12 3-pin for DC power with waterproof cover
1xPower switch on the rear
Option:
   2x M12 Connectors with waterproof cover for selecting 2 of the following:
      2x USB2.0, 1xUSB 3.0, 1xLAN (PoE optional), 1xCOM, 1xCAN

Storage Space
1x 2,5" SATA3 HDD
1x M.2 B-Key (SATA3), Support 2242

Expansion Slots
1x Mini-PCIe slot for 4G/5G Module
1x NANO-SIM
1x M.2 E-key 2230  for optional WIFI/BT module
1x RFID Module on the front side (option)

Display
Display type: 12,1" TFT-LCD
Resolution: 1024x768
Brightness: Standard is 500 cd/m2, can upgrade to high brightness 1000cd/m2
Touch: PCAP Touch
MTBF: 30,000h

Power
9-36VDC Input

For more information please see datasheet or contact sales.
