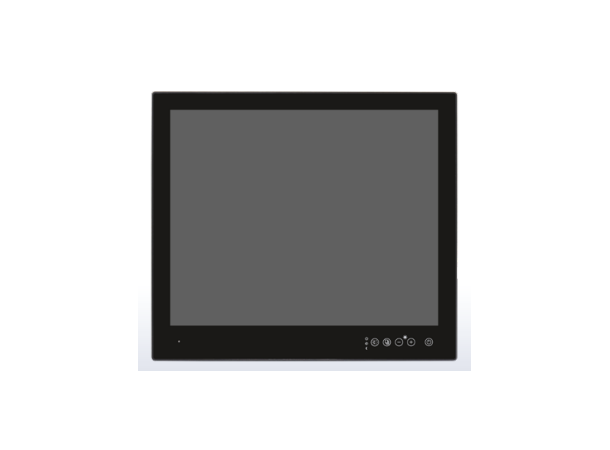

Aplex ViKING-919BP

19" Marine Panel PC with IEC60945 Ceritication, 24V isolated power input,
true slat bezel design and IP66-rated front panel. The enclosure is also coated for Anti-Corrosion.

Specification

System
CPU: SoC intel Core i3-8145UE (2C/4T, 2.2GHz, 15W TDP), can upgrade to i5-8365UE
Memory: 1x260-pin SO-DIMM up to 32GB DDR4 2400 MHz
TPM: TPM 2.0

IO Ports
4x USB 3.0 Type A
1x RS-232 (COM1, 5-pin terminal block)
1x RS232/422/485, default RS485 (COM2 , 5-pin terminal block)
1x Displayport
1x Line-Out, Phone jack
1x ESD Ground
2x GbE Rj45
1x 2-pin Terminal block for remote power switch
1x 3-pin Terminal Block Connector

Storage Space
Standard is 1x M.2 M-Key 2242, Option for 1x2,5" HDD

Expansion Slots
1x TB-528 Expansion Connector (Only for 19/24"), Option for TB-528C2I for Isolation 2x RS422/485

Display
Display type: 19" TFT-LCD
Resolution: 1280x1024
Brightness: Standard is 350 cd/m2, can upgrade to high brightness 1000cd/m2
Touch: PCAP Touch
MTBF: 50,000h

Power
9-36VDC Input

For more information please see datasheet or contact sales.
