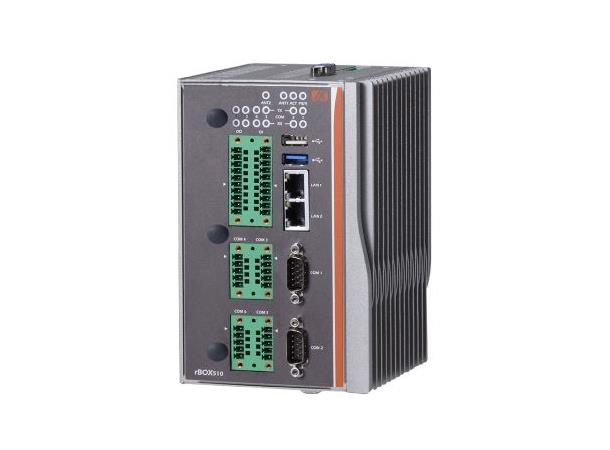

rBOX510-6COM(ATEX/C1D2)-FL1.75G

4 GB Mem

Product nr: 119879
rBOX510-6COM(ATEX/C1D2)-FL1.75G 4 GB Mem
CPU
  • Intel® Atom™ processor E3827 (1.75GHz)
Chipset
  • SoC Integrated
System Memory
  • DDR3L 4GB onboard
COM
  • 2 x RS-232/422/485
  • 4 x isolated RS-232/422/485
USB
  • 1 x USB 3.0
  • 1 x USB 2.0
Ethernet
  • 2 x isolated 10/100/1000Mbps (Intel® i210IT)
PoE
  • N/A
CANbus
  • N/A
Digital I/O
  • 1 x isolated DIO (8-IN/8-OUT)
Display
  • 1 x VGA
Wireless
  • N/A
Storage
  • 1 x CompactFlash™
  • 1 x 2.5" SATA SSD (or 1 X mSATA)
Others
  • Supports AXView 2.0
  • RTC Battery function
  • AXView 2.0 intelligent remote monitoring & management software
Power Supply
  • 12~48V DC-In
Watchdog Timer
  • WDT 1: one step is 1 sec, 255 levels
  • WDT 2: one step is 1 sec/ 1 min, 255 levels
Construction
  • Extruded aluminum and heavy-duty steel, IP30
Operating Temperature
  • -40°C ~ +70°C (-40°F ~ +158°F)
Relative Humidity
  • 10% ~ 95%
Vibration
  • 5g@10~150Hz, amplitude 0.35mm (operation/ storage/ transport)
Dimensions
(W x D x H)
  • 100.6 x 110 x 135 mm (3.96" x 4.33" x 5.31")
Weight (net/gross)
  • 1.5 kg (3.3 lb)/ 1.88 kg (4.14 lb)
Certifications
  • ATEX
  • C1D2
  • Heavy Industrial CE
  • FCC Part 18
  • EN50121-4 (Railway application)
  • UL60950-1
EOS
  • Windows 7 Embedded, Windows 8 Embedded, Linux support package
Mounting
  • Din rail
  • Wall mount
