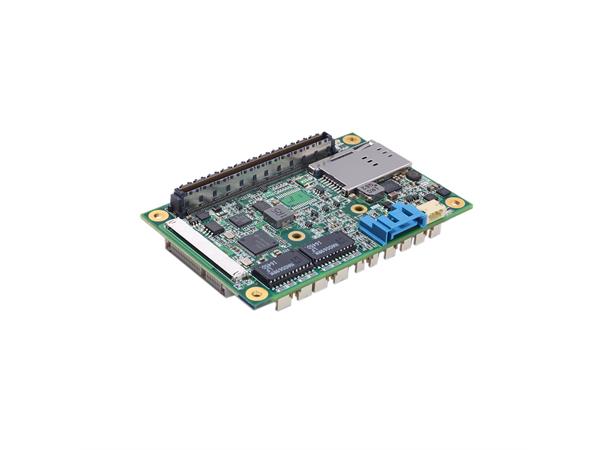

CEB94018 COM Express Mini Carrier board

Axiomtek. Type 10, w/o cables

Product nr: 122416
CEB94018 COM Express Mini Carrier board Axiomtek. Type 10, w/o cables
CPU
  • On the module
Chipset
  • On the module
System Memory
  • On the module
BIOS
  • On the module
COM
  • 2 x RS-232 TX/RX/RS-422/RS-485
USB
  • 6 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i210IT)
  • 1 x 10/100/1000 Mbps signals routed from CPU
  • module
Display
  • 1 x LVDS
  • 1 x VGA
Digital I/O
  • 4-IN & 4-OUT
Audio
  • HD audio with Line-out/MIC-in
Storage
  • 1 x SATA-600
Expansion
  • 2 x Half-size PCI Express Mini Card slot
  • 1 x SIM card slot
Others
  • 1 x I2C
  • 1 x SMBus
Battery
  • N/A
Power Input
  • AT: +5V or +9V ~ +14V DC-in
Watchdog Timer
  • On the module
Hardware Monitoring
  • Yes
Operating Temperature
  • -40ºC ~ +85ºC (-40ºF ~ +185ºF)
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 244 x 291 mm
Board Thickness
  • 2.0 mm
Certificate
  • CE
