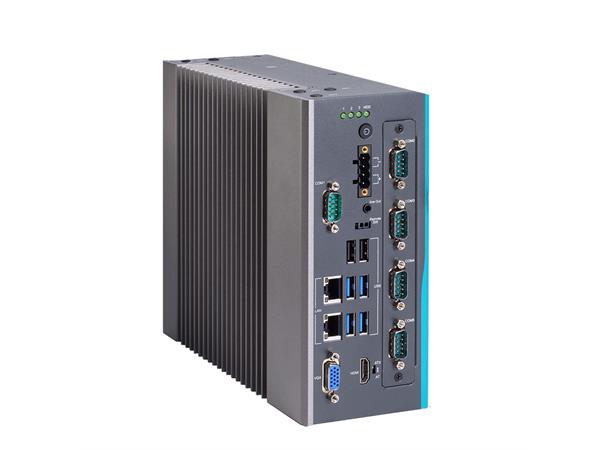

IPC960-525-N-DC-Q370

Q370, 24VDC, 2x/4x PCIe slot kit(optio)

Product nr: 130504
263567
Datasheet
CPU
  • 9th/8th gen Intel® Core™ processor, up to 65W
Chipset
  • Intel® H310/Intel® Q370
System Memory
  • 2 x DDR4-2666/2400 MT/s un-buffered SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (default RS-232)
  • More COM ports available from extension I/O modules
USB
  • Intel®H310:
  • 4 x USB 3.1 Gen1
  • 2 x USB 2.0
  • 1 x USB 2.0 (internal, 180D type A for license key, up to 30mm)

  • Intel®Q370:
  • 4 x USB 3.1 Gen2
  • 2 x USB 2.0
  • 1 x USB 2.0 (internal, 180D type A for license key, up to 30mm)
  • More USB ports available from extension I/O modules
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i211-AT & i219-LM)
  • More LAN ports available from extension I/O modules
Display
  • 1 x VGA
  • 1 x HDMI
Digital I/O
  • Available from extension I/O modules
Audio
  • 1 x Line-out
Storage
  • -10°C to +60°C (+14°F to +140°F) with Intel®, 9th/8th gen Intel® Core™ and W.T. HDD/SSD
Expansion
  • 1 x SIM slot
  • Intel® H310: 1 x Full-size PCI Express Mini Card slot (USB interface)
  • Intel® Q370: 1 x Full-size PCI Express Mini Card slot (USB & PCIe interface) or 1 x M.2 Key B 3050 socket
Others
  • TPM 2.0
  • AMT 12
Power Supply
  • Type: ATX/AT
  • Input: 24 VDC (uMin=19V/uMax=30V)
Construction
  • Aluminum extrusion heavy-duty cold-rolled steel
Operating Temperature
  • -10°C to +60°C (+14°F to +140°F) with Intel®, 9th/8th gen Intel® Core™ and W.T. HDD/SSD
Relative Humidity
  • 10% to 90%, non-condensing
Dimensions
(W x D x H)
  • 83.5 x 192 x 230 mm (3.28" x 7.54" x 9.04")
Weight (net/gross)
  • 3.82 kg (8.43 lb)/4.78 kg (10.55 lb)
Software Support
  • N/A
Certifications
  • CE/FCC
