eBOX671B

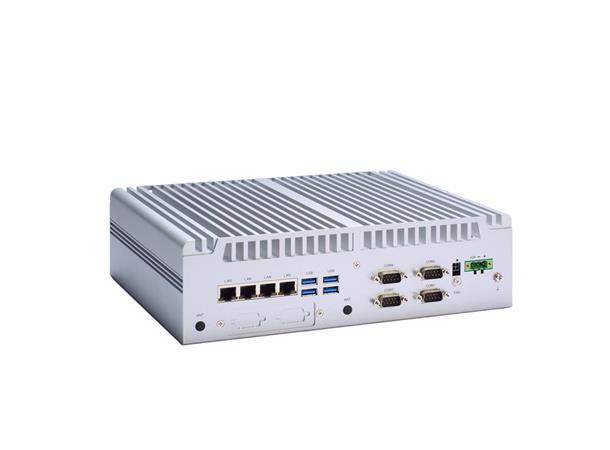

The Axiomtek eBOX671B is a fanless industrial embedded system powered by 12th / 13th Gen Intel® Core™ or Celeron® processors via an LGA 1700 socket and the Intel® R680E chipset. It is engineered for rugged environments, featuring dual DDR5 SO-DIMM support (up to 64 GB), multiple high-speed LAN ports, dual 2.5? SATA bays with RAID support, and optional MXM 3.1 Type A GPU modules—making it ideal for edge computing, machine vision, robotics, industrial automation, and demanding embedded deployments.
Key Features
- Processor: LGA 1700 socket supporting 12th/13th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® (35 W/65 W TDP)
- Chipset: Intel® R680E
- Memory: 2 × DDR5-4800 SO-DIMM up to 64 GB
- Ethernet: 4 LAN ports (e.g., 3 × 2.5 GbE + 1 × 1 GbE, with optional PoE) for high-performance network connectivity
- Storage: Dual 2.5? SATA HDD/SSD bays (up to 15 mm height) with RAID 0/1 support; additional M.2 or NVMe slots supported
- Graphics / Display: 2 × HDMI 1.4b (one lockable), 1 × DisplayPort 1.4a. Support for up to 5 display outputs when using optional MXM 3.1 Type A GPU module
- USB & I/O: Multiple USB ports (e.g., USB 3.2 Gen2 and Gen1), flexible I/O window with configurable COM, DIO or other modules
- Power Input & Rugged Features: Wide DC power input range (9 to 36 VDC), rugged IP40-rated aluminum/steel housing, designed for industrial use with wide operating temperature (-40 °C to +65 °C) when configured appropriately
- Expansion / Upgrade Options: MXM 3.1 Type A GPU slot for added graphics/processing performance, flexible I/O window, SIM slot for communications modules, option for fan kit if higher thermal load
- Mounting & Construction: Fanless design, heavy-duty chassis, supports wall or DIN-rail mounting (depending on kit), industrial grade build
