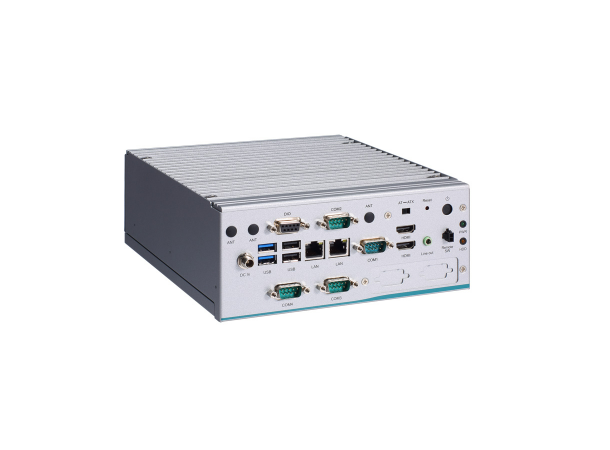

eBOX640A Fanless Box PC
12th Gen i7/i5/i3/Celeron, H610
CPU
LGA1700 12th gen Intel® Core™ i7/i5/i3 or Celeron® processor (TDP up to 35W)
Chipset
Intel® H610
System Memory
2 x 260-pin DDR4-3200/2666/2400 SO-DIMM, up to 64GB
BIOS
AMI
COM
1 x RS-232/422/485 (COM1)
3 x RS-232 (COM2-4)
USB
2 x USB 3.2 Gen1
2 x USB 2.0
Ethernet/PoE
1 x 2500/1000/100/10 Mbps Ethernet (Intel® I225-V)
1 x 1000/100/10 Mbps Ethernet (Intel® I219-V)
Display
2 x HDMI
Digital I/O
1 x 8-CH DIO (4-in/4-out)
Audio
1 x Audio (Line-out)
Storage
1 x 2.5" SATA HDD drive bay (up to 15 mm height)
Expansion
1 x M.2 Key B 2242 (PCIe x2 signal , for storage only)
1 x M.2 Key E 2230 (PCIe x1 & USB 2.0 signal)
1 x Full-size PCI Express Mini Card slot (PCIe x1 & USB 2.0 signal)
Others
TPM 2.0
Power
19 VDC
Watchdog Timer
255 levels, 1 to 255 sec.
Construction
Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
-10°C to +50°C (14°F to 122°F) (with W.T. SSD/DRAM)
Relative Humidity
10% - 90%, non-condensing
Vibration
IEC 60068-2-64 (w/SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
Shock
IEC 60068-2-27 (w/SSD: 50G, half sine, 11 ms duration)
Dimensions
(W x D x H)
195 x 210.6 x 80 mm (7.67" x 8.27" x 3.14")
Weight (net/gross)
3 kg (6.61 lb)/3.6 kg (7.94 lb)
Certifications
CE, FCC Class A, UKCA
EOS Support
Win 10 IoT, Win 11 IoT, Linux
Software Support
N/A
Mounting
Wall mount kit
DIN-rail kit
Accessories
