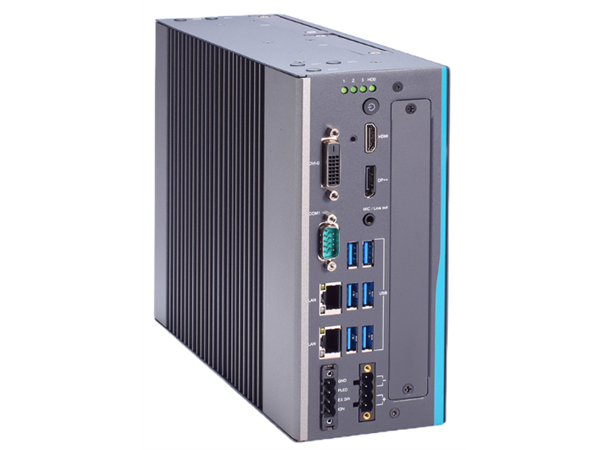

IPC960A Fanless Industrial BoxPC, Q670E

13/12th Gen i7/i5/i3, 2x2,5", 1xM.2 PCIe

Product nr: 137152
278343
ipc960a.pdf
CPU
  • 13th/12th gen Intel® Core™ processor, up to 65W
Chipset
  • Intel® H610E/Q670E
System Memory
  • 2 x DDR5 4800/4000 SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (default RS-232)
  • More COM ports available from extension I/O modules
USB
  • Intel® H610E:
  • 2 x USB 3.2 Gen2x1 (10G) type A
  • 2 x USB 3.2 Gen1x1 (5G) type A
  • 2 x USB 2.0
  • 2 x USB 2.0 Type A
  • Intel® Q670E:
  • 6 x USB 3.2 Gen2x1 (10G) type A
  • 1 x USB 2.0 (Internal, up to 30mm) 180D type A
Ethernet
  • 1 x 2.5GbE LAN (Intel® I226-V)
  • 1 x 1GbE LAN (Intel® 1219-LM); with Intel AMT (Q670)
  • More LAN ports available from extension I/O modules
Display
  • 1 x DisplayPort++ with 4096 x 2160 resolution supported
  • 1 x HDMI with 4096 x 2160 resolution supported
  • 1 x DVI-D with 1920 x 1200 resolution supported
Digital I/O
  • Available from extension I/O modules
Audio
  • 1 x 3.5mm jack for Mic-in and Line-out
Storage
  • Intel® H610E:
  • 2 x 2.5" HDD/SSD bay (7/9.5/15 mm height)
  • Intel® Q670E:
  • 2 x 2.5" HDD/SSD bay (7/9.5/15 mm height)
  • 1 x M.2 Key M 2280 socket (PCIe x4 Gen4)
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB & PCIe interface) with SIM slot
Others
  • TPM 2.0
  • 1 x HDD/SSD access LED
  • 3 x User's LED
  • 1 x Switch for power on/off with LED (default ATX)
Power
  • Input: 18 to 36 VDC
  • 1 x Switch for power on/off with LED (default ATX)
  • 1 x 4-pin terminal block (5.08 mm) for DC input
  • 1 x 4-pin terminal block (5.08 mm) for ignition control, remote power and remote LED
Construction
  • Aluminum extrusion heavy-duty cold-rolled steel
Operating Temperature
  • -20°C to +60°C with 13th/12th gen Intel® Core™ processor and industrial wide-temp SSD, 0.7m/s air flow
Relative Humidity
  • 10% to 90%, non-condensing
Dimensions
(W x H x D)
  • 83.5 x 192 x 260 mm (3.29" x 3.62" x 10.24")
Weight (net/gross)
  • 4.2 kg (9.26 lb)/5.2 kg (11.46 lb)
Software Support
  • AXView
EOS Support
  • Windows® 10, Linux
Certifications
  • CE (EN 61000-6-4/EN 61000-6-2)/FCC
