See Eyes SC-IPC3024M5

Key Feature

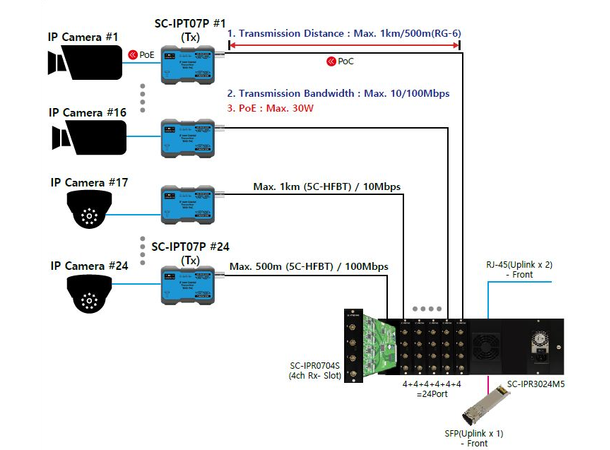

• SC-IPC3024M5 is a 24 channel transmission unit for EoC(Ethernet over Coax.) products. By using existing coaxial cable, this product can transmit power of transmitter and IP camera over single coaxial cable. At the same time, this product can receive IP camera signal and transmit several channel’s Data from IP camera by NVR 1 Port, so it is able to lower installation cost and reduce the construction cost. Also, this product complements the short range of Ethernet devices using UTP cables.
• Channel: 24Port
• Product Name: 24Port Integrated Slot Type 'Ethernet + PoE' over Coax. Transmission
• Unit: SET
• Max. Distance: 1km (10Mbps) / 500m (100Mbps) over RG-6
• Components SC-IPT07P(Tx) x 24EA + SC-IPR3024M5(Rx) X 1EA
