HD 24T26 MMC-M6E-4XPBAA

24.0" MMC Intel i3-1115G4E 2.2Ghz 8GBRAM 240GBSSD-3DT OSWIN11IoT/2024 ACDC PCTouch Black GDC 2xDiskbay Buzzer.

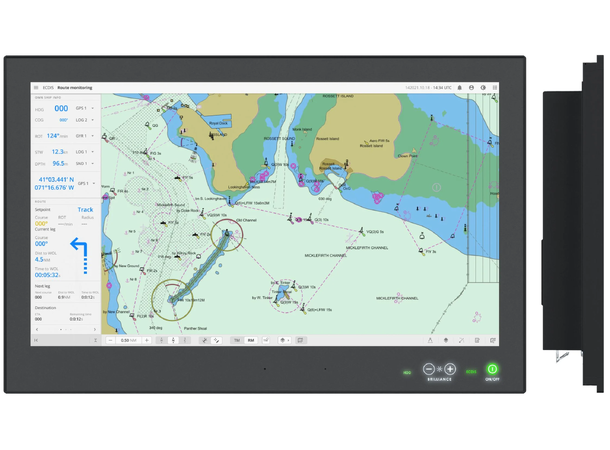

The HD 24T26 MMC is a versatile marine panel computer designed for high-performance and reliability in maritime environments. It features a 24-inch full HD touch screen, making it ideal for navigation, automation, and other critical applications on ships and offshore platforms.

Key Features

• High-Resolution Display: 24-inch full HD screen for clear and detailed visuals.
• Rugged Design: Built to withstand harsh marine conditions with robust construction and high durability.
• Wide Viewing Angles: Ensures visibility from different positions on the bridge or control room.
• Multiple Input Options: Supports various input types including HDMI, DisplayPort, and USB for versatile connectivity.
• Touchscreen Capability: Projected capacitive touchscreen for interactive use and ease of operation.

HD 24T26 MMC Specifications

Display

• Screen Size: 24 inches
• Resolution: 1920 x 1080 (Full HD)
• Brightness: 300 cd/m²
• Contrast Ratio: 3000:1

Input/Output

• HDMI, DisplayPort, USB
• 3 x GbLAN (RJ45)

Environmental Limits

• Operating Temperature: -15 to 55°C
• Storage Temperature: -20 to 60°C
• Humidity: 10% to 95% (non-condensing)

Certifications

• IP66 front, IP20 rear
• IEC 60945
• EN 60950-1
• CE, FCC
