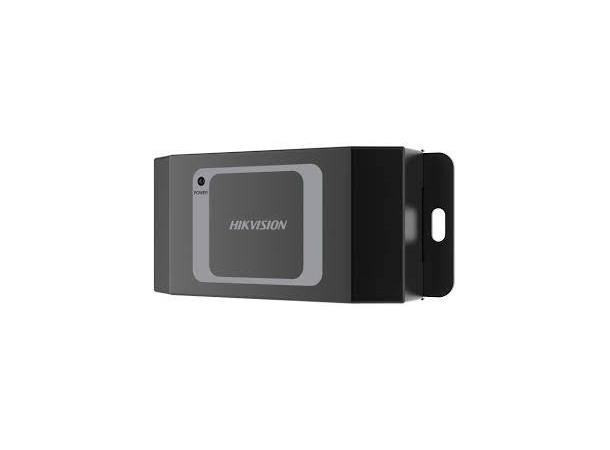

Hikvision DS-K2M061

• Secure module
•  Accessible Card Reader: 1 Wiegand reader
• Uplink Communication Interface: RS-485 Interface
• Input interface: Door Magnetic×1, Door Switch×1, Tamper-proof×1
• Output interface: Door Switch Relay×1, Alarm Relay×1.
• Power: DC 12V
• Wall Mounting
• Dimesions: 48mm x 115mm x 26mm (1.9" x 4,5" x 1.0")
• Communicates with the access control terminal via RS-485 to execute the commands from the terminal including open door, close door, normally open and normally closed
• Collects the door magnetic signal, the exit button signal and the tamper-proof signal and send them to the access control terminal
• Supports tampering alarm
• Supports RS-485 communication indicators to show the communication status
• 4-ch DIP switch supporting ID No. configuration
• Supports a Wiegand interface to connect a Wiegand card reader to enter/exist access control terminal by swiping card
• Fire interface and exit button linkage
