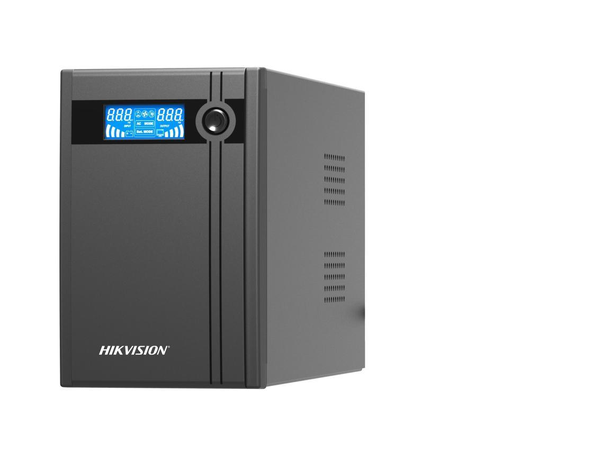

Hikvision DS-UPS2000

The Hikvision DS-UPS2000 is a reliable uninterruptible power supply (UPS) designed to provide backup power and protect electronic equipment from power disturbances. It is ideal for use in various environments, including offices, server rooms, and other critical infrastructure setups.

Key Features

• High Capacity: Provides 2000 VA / 1200 W power capacity, ensuring sufficient backup power for connected devices.
• Wide Input Voltage Range: Operates within a voltage range of 140 VAC to 290 VAC, accommodating various power conditions.
• Fast Transfer Time: Ensures a transfer time of = 10 ms, minimizing interruptions during power outages.
• Comprehensive Protection: Offers surge protection, overload protection, discharge protection, and short circuit protection.
• LCD Display: Provides real-time information on input voltage, output voltage, battery capacity, and load level.
• USB Port: Allows for remote control and monitoring via a connected computer.
• Efficient Battery: Equipped with 12 V/9 Ah lead-acid batteries, providing reliable backup power with a recharge time of 6-8 hours to recover 90% capacity.

Specifications

Power

• UPS Capacity: 2000 VA / 1200 W

Input

• Input Voltage Range: 140 VAC to 290 VAC
• Input Frequency: 50/60 Hz self-adaptive
• Plug Type: Schuko, UK TYPE G, Type B (NEMA 5-15)

Output

• Output Voltage Range: 210 VAC to 235 VAC
• Output Frequency: 50 Hz ± 0.5 Hz
• Transfer Time: = 10 ms
• Waveform: PWM
• Outlet Type: Schuko, Universal
• Outlet Number: 4

Battery

• Battery Type: 12 V/9 Ah × 2 pcs, lead-acid battery
• Recharge Time: 6-8 hours to recover 90% capacity
• Typical Backup Time: 70 min at 100 W, 17 min at 300 W, 5 min at 600 W

Interface

• Communicate Ports: USB

Protection

• Full Protection: Surge protection, Overload protection, Discharge protection, Short circuit protection

Indicator

• Display: LCD Screen (Input Voltage, Output Voltage, Battery capacity, Load level)
• Alarm: Charging Mode (DC mode): Sounding every 8 seconds, Low Battery: Sounding every second, Overloading Mode: Sounding every 0.5 seconds, Fault: Continuously sounding

General

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Operating Humidity: 30% to 90% (non-condensing)
• Dimensions: 345 mm × 122 mm × 192 mm (13.58" × 4.80" × 7.56")
• Weight: Approx. 11 kg (24.3 lb)
