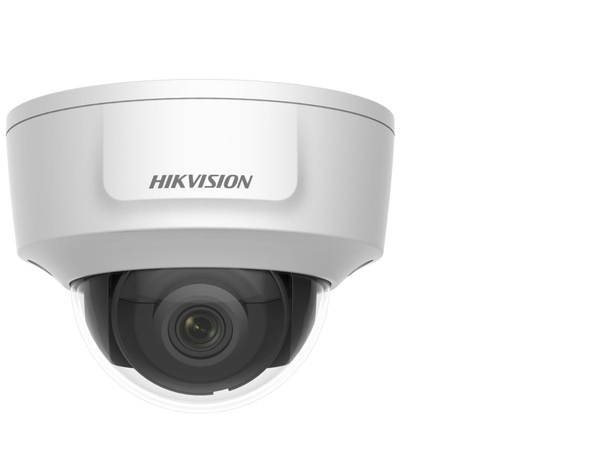

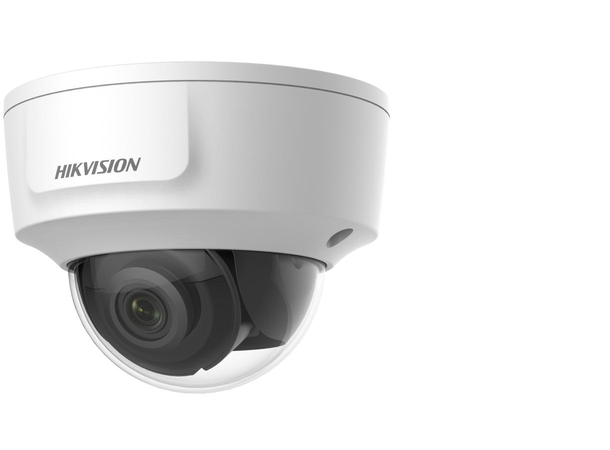

Hikvision DS-2CD2126G2-IMS
The Hikvision DS-2CD2126G2-IMS is a 2 MP HDMI fixed dome network camera. It features high-quality imaging, efficient compression technology, and robust design, making it ideal for various surveillance applications.
Key Features
- High-Quality Imaging: 2 MP resolution provides clear and detailed visuals.
- Efficient Compression: H.265+ compression technology reduces bandwidth and storage requirements.
- Wide Dynamic Range: 120 dB true WDR technology ensures clear imaging against strong backlight.
- HDMI Output: Direct HD live view with HDMI output.
- Robust Design: Full metal materials and vandal-proof (IK10) construction.
Hikvision DS-2CD2126G2-IMS Specifications
Camera
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Min. Illumination: 0.002 Lux
- Max. Resolution: 1920 × 1080
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Lens
- Focal Length: 2.8 mm
- Field of View: Horizontal: 106°, Vertical: 52°, Diagonal: 129°
- Lens Type: Fixed focal lens
- Aperture: F1.4
Illuminator
- Supplement Light Type: IR
- Supplement Light Range: Up to 30 m
- IR Wavelength: 850 nm
Video
- Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360); 60 Hz: 30 fps (640 × 480, 640 × 360)
- Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Video Compression: H.265/H.264/H.264+/H.265+
Audio
- Audio Type: Mono sound
- Environment Noise Filtering: Yes
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTCP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
- Simultaneous Live View: Up to 6 channels
- API: ISAPI, SDK, ISUP, ONVIF (Profile S, Profile G, Profile T)
Power
- Power Supply: 12 VDC ± 25%, PoE (802.3af, class 3)
- Power Consumption: Max. 6.5 W
Working Environment
- Working Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working Humidity: 95% or less (non-condensing)
General
- Dimensions: Ø 111 mm × 82.4 mm (Ø 4.37" × 3.24")
- Weight: Approx. 500 g (1.1 lb.)
Hikvision offers free IVMS-4200 management software that allows you to manage and use Hikvision devices in many ways. The software has several functions, including real-time live view of cameras and recorders, search and playback of recordings, reception of events and alarms, map-based views, management of intercoms and AX burglar alarm systems, Access control systems, etc.
Hikvision is the world's largest manufacturer of camera surveillance products and surveillance technologies. Hikvision has more than 42,000 employees, of which more than 20,000 are R&D engineers. Every year, the company invests more than 10% of its annual turnover in research and development to promote continuous product innovation.
Hikvision is headquartered in Hangzhou, China. The company’s R&D teams operate globally in the UK, Canada, and the Asia-Pacific region, as well as in eight cities in China. The company also has a local office and staff in several countries, including all Nordic countries. The company's nearest central warehouse is located in the Netherlands.
In addition to the video security industry, Hikvision expanded its business into smart home technology, industrial automation, and the automotive electronics industry - all based on video intelligence - to explore channels to support long-term development.
