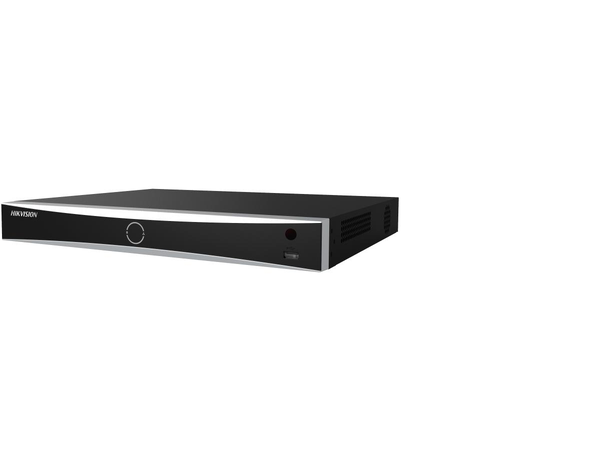

Hikvision DS-7616NXI-K2-D

The Hikvision DS-7616NXI-K2-D is a 16-channel 1U K Series AcuSense 4K NVR designed for advanced video surveillance applications. It features intelligent analytics and high decoding capacity, making it ideal for various security needs.

Key Features

• High-Quality Video: Supports up to 16-ch IP camera inputs with H.265+/H.265/H.264+/H.264 video formats.
• Intelligent Analytics: Includes facial recognition, perimeter protection, and motion detection 2.0 to reduce false alarms.
• High Decoding Capacity: Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity.
• HD Video Output: Provides independent HDMI and VGA outputs with HDMI video output at up to 4K resolution.
• Efficient Storage: H.265+ compression reduces storage space by up to 75%.
• Secure Transmission: Stream over TLS encryption technology for secure stream transmission.
• Versatile Connectivity: Supports Hik-Connect for easy network management.

Hikvision DS-7616NXI-K2-D Specifications

Video and Audio

• IP Video Input: 16-ch
• Incoming Bandwidth: 160 Mbps
• Outgoing Bandwidth: 160 Mbps
• HDMI Output: 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
• VGA Output: 1-ch, 1920 × 1080/60 Hz
• Audio Output: 1-ch, RCA (2.0 Vp-p, 1 KO)
• Two-Way Audio: 1-ch, RCA (Linear, 1 KO)

Decoding

• Decoding Format: H.265/H.265+/H.264+/H.264
• Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback: 16-ch
• Decoding Capability: AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

Storage and Playback

• HDD: Up to 2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
• Synchronous Playback: 16-ch

Network & Ethernet Access

• Ethernet Interface: 1 self-adaptive 10/100/1000 Mbps Ethernet interface

General

• Power Supply: 100 to 240 VAC, 50/60 Hz
• Power Consumption: = 80 W
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90% RH (Non-Condensing)
• Dimensions: 385 mm × 315 mm × 52 mm
• Weight: = 2 kg

Hikvision offers free IVMS-4200 management software that allows you to manage and use Hikvision devices in many ways. The software has several functions, including real-time live view of cameras and recorders, search and playback of recordings, reception of events and alarms, map-based views, management of intercoms and AX burglar alarm systems, Access control systems, etc.

Hikvision is the world's largest manufacturer of camera surveillance products and surveillance technologies. Hikvision has more than 42,000 employees, of which more than 20,000 are R&D engineers. Every year, the company invests more than 10% of its annual turnover in research and development to promote continuous product innovation.

Hikvision is headquartered in Hangzhou, China. The company’s R&D teams operate globally in the UK, Canada, and the Asia-Pacific region, as well as in eight cities in China. The company also has a local office and staff in several countries, including all Nordic countries. The company's nearest central warehouse is located in the Netherlands.

In addition to the video security industry, Hikvision expanded its business into smart home technology, industrial automation, and the automotive electronics industry - all based on video intelligence - to explore channels to support long-term development.
