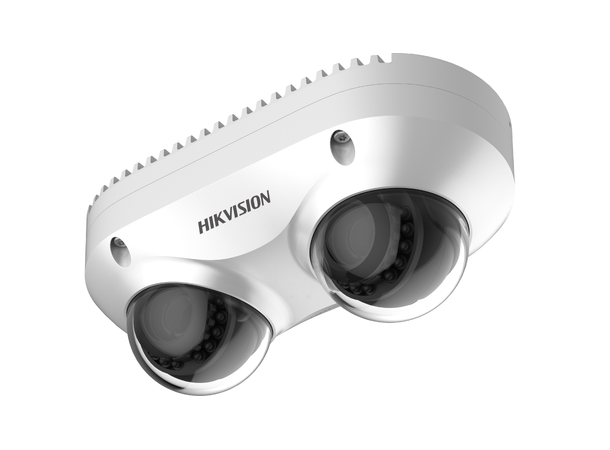

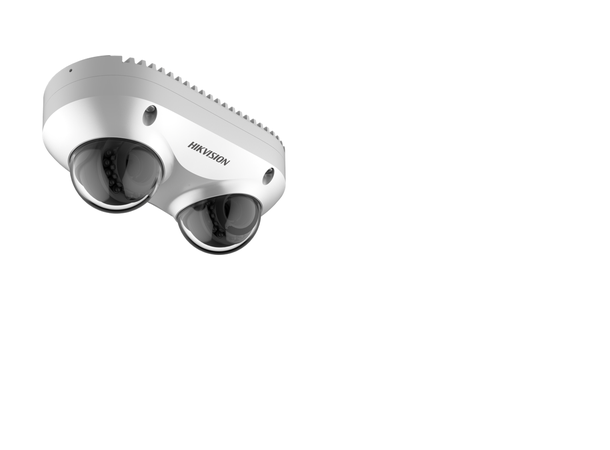

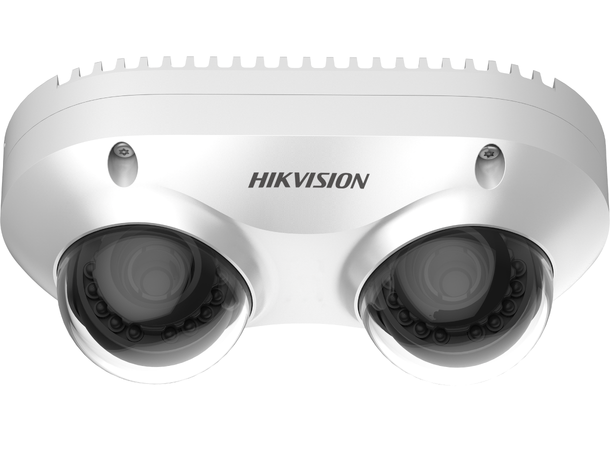

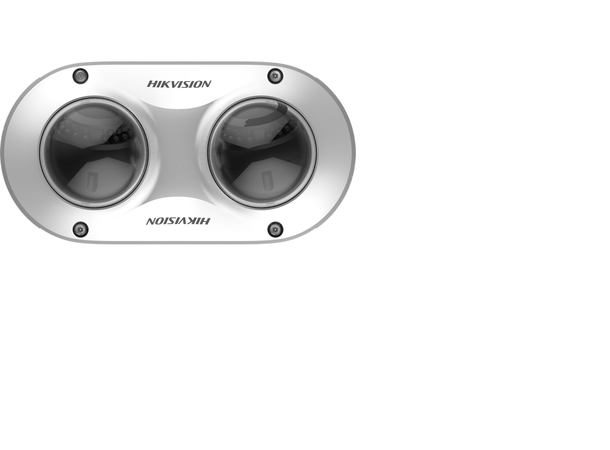

Hikvision DS-2CD6D42G0-IS (2.8 mm)

The Hikvision DS-2CD6D42G0-IS (2.8 mm) is a dual-lens panoramic network camera that delivers 4 MP resolution and wide-area coverage in a compact design. With advanced image processing, smart detection features, and efficient compression, it is ideal for indoor surveillance applications requiring broad visibility and intelligent monitoring.

Key Features

• Dual-Lens Panoramic View: Two 2 MP lenses provide a stitched 4 MP panoramic image for wide-area monitoring.
• High-Quality Imaging: 2560 × 1440 resolution with 120 dB WDR and 3D DNR for clear images in challenging lighting conditions.
• Smart Detection: Supports line crossing, intrusion detection, and region entrance/exit detection.
• Efficient Compression: H.265+/H.265/H.264+/H.264 video compression reduces bandwidth and storage usage.
• Built-in Audio: Integrated microphone and speaker for two-way audio communication.
• Flexible Installation: Compact form factor with 2.8 mm lenses for wide field of view.
• Secure Access: HTTPS encryption, multi-level user authentication, and IP address filtering.

Specifications

• Image Sensor: Dual 1/2.8" Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Lens: 2.8 mm fixed lens
• Field of View: Horizontal 98°, Vertical 52°, Diagonal 114° (per lens)
• Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
• IR Range: Up to 10 m
• WDR: 120 dB
• Video Compression: H.265+/H.265/H.264+/H.264
• Audio: Built-in mic and speaker, supports G.711/G.722.1/G.726/MP2L2/PCM
• Smart Features: Motion detection, tampering alarm, line crossing, intrusion detection
• Network: 10/100 Mbps Ethernet, ONVIF (Profile S, G), ISAPI
• Power Supply: 12 VDC ± 25%, PoE (802.3af)
• Power Consumption: Max. 9 W
• Operating Conditions: -10 °C to 50 °C (14 °F to 122 °F), Humidity = 95% RH
• Dimensions: 146 mm × 146 mm × 65 mm
• Weight: Approx. 800 g

Hikvision offers free IVMS-4200 management software that allows you to manage and use Hikvision devices in many ways. The software has several functions, including real-time live view of cameras and recorders, search and playback of recordings, reception of events and alarms, map-based views, management of intercoms and AX burglar alarm systems, Access control systems, etc.

Hikvision is the world's largest manufacturer of camera surveillance products and surveillance technologies. Hikvision has more than 42,000 employees, of which more than 20,000 are R&D engineers. Every year, the company invests more than 10% of its annual turnover in research and development to promote continuous product innovation.

Hikvision is headquartered in Hangzhou, China. The company’s R&D teams operate globally in the UK, Canada, and the Asia-Pacific region, as well as in eight cities in China. The company also has a local office and staff in several countries, including all Nordic countries. The company's nearest central warehouse is located in the Netherlands.

In addition to the video security industry, Hikvision expanded its business into smart home technology, industrial automation, and the automotive electronics industry - all based on video intelligence - to explore channels to support long-term development.
