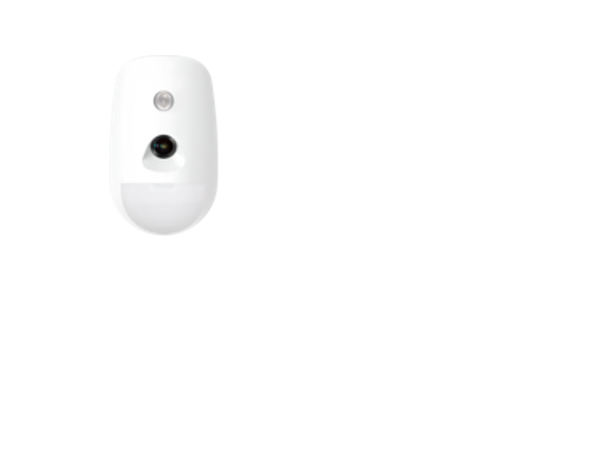

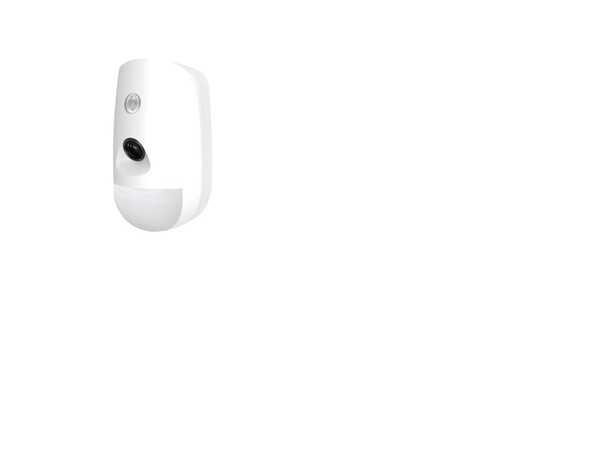

Hikvision DS-PDPC12P-EG2-WE(B)

Wireless PIR-Camera Detector

Product nr: 139567
Hikvision DS-PDPC12P-EG2-WE(B) Wireless PIR-Camera Detector Hikvision DS-PDPC12P-EG2-WE(B) Wireless PIR-Camera Detector

Hikvision DS-PDPC12P-EG2-WE(B)

The Hikvision DS-PDPC12P-EG2-WE(B) is a fully supervised two-way wireless PIR camera detector designed for the AX PRO alarm system. It combines motion detection with visual verification, offering reliable indoor protection with pet immunity and infrared night vision.


Key Features

  • Dual Detection: Combines PIR motion detection with a built-in camera for real-time image verification.
  • Pet Immunity: Ignores animals up to 30 kg to reduce false alarms.
  • Infrared Night Vision: IR fill light provides up to 12 m visibility in darkness.
  • Wide Detection Coverage: 12 m range with 85.9° angle and 52 detection zones.
  • Secure Wireless Transmission: CAM-X protocol with AES-128 encryption and up to 800 m range (open area).
  • Long Battery Life: Up to 6 years of standby time with 3 × CR123A batteries.
  • Easy Installation: Multiple enrollment methods and remote configuration via app.

Specifications

  • Detection Method: Passive infrared, video verification
  • Detection Range: 12 m
  • Detection Angle: 85.9°
  • Detection Zones: 52
  • Detectable Speed: 0.3 to 2 m/s
  • Sensitivity: Auto, High, Pet
  • Pet Immunity: Up to 30 kg
  • White Light Filter: 6500 lux
  • Image Sensor: ASX340
  • Image Resolution: 640×480, 320×240, 160×120 (JPEG)
  • Field of View: 88° (H), 68° (V)
  • Frame Rate: 2 fps
  • Fill Light: Infrared, up to 12 m
  • Transmission Frequency: 868 MHz
  • Transmission Range: Up to 800 m (open area)
  • Encryption: AES-128
  • Battery Type: CR123A × 3
  • Battery Life: Up to 6 years (standby)
  • Operating Temperature: -10 °C to 55 °C
  • Humidity: 10% to 90% RH
  • Dimensions: 72.2 mm × 120.5 mm × 56.7 mm
  • Weight: 210 g
  • Mounting Height: 1.8 to 2.4 m
  • Mounting Method: Wall

Hikvision offers free IVMS-4200 and Hik-Connect apps for managing and monitoring AX PRO alarm systems. These tools provide real-time alerts, remote control, and integration with other Hikvision devices for a unified security experience.
