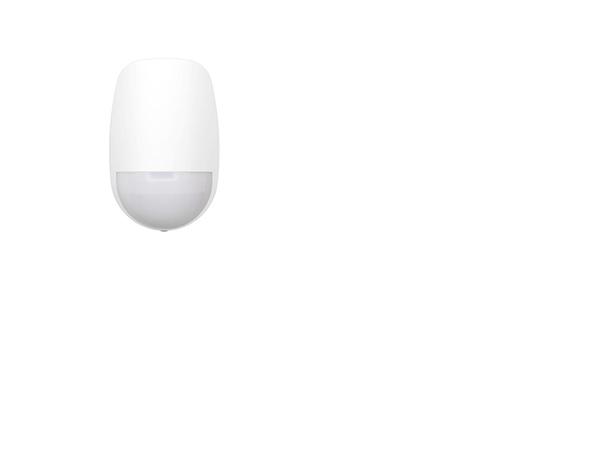

Hikvision DS-PDP15P-EG2-WE(B)
The Hikvision DS-PDP15P-EG2-WE(B) is a fully supervised two-way wireless PIR detector designed for the AX PRO alarm system. It features reliable motion detection, pet immunity, tamper protection, and long battery life, making it ideal for indoor intrusion detection.
Key Features
- Wide Detection Coverage: 15 m range with 90° angle and 84 detection zones.
- Pet Immunity: Ignores animals up to 30 kg to reduce false alarms.
- Smart Environmental Control: Advanced digital signal processing and 3D optics for accurate detection.
- Secure Wireless Transmission: Tri-X protocol with AES-128 encryption and up to 1.6 km range (open area).
- Long Battery Life: Up to 5 years of standby time with a single CR123A battery.
- Easy Installation: Multiple enrollment methods and optional wall/ceiling mounting accessories.
- Tamper Protection: Front and rear tamper detection for enhanced security.
Specifications
- Detection Method: Passive Infrared
- Detection Range: 15 m
- Detection Angle: 90°
- Detection Zones: 84
- Detectable Speed: 0.3 to 2 m/s
- Sensitivity: Auto, High, Pet
- Pet Immunity: Up to 30 kg
- White Light Filter: 6500 lux
- Digital Temperature Compensation: Supported
- Creep Zone Protection: Supported
- Transmission Frequency: 868 MHz
- Transmission Range: Up to 1.6 km (open area)
- Encryption: AES-128
- Battery Type: CR123A × 1
- Battery Life: Up to 5 years (standby)
- Operating Temperature: -10 °C to 55 °C
- Humidity: 10% to 90% RH
- Dimensions: 65.5 mm × 103 mm × 48.5 mm
- Weight: 128 g
- Mounting Height: 1.8 to 2.4 m
- Mounting Method: Wall
Hikvision offers free IVMS-4200 and Hik-Connect apps for managing and monitoring AX PRO alarm systems. These tools provide real-time alerts, remote control, and integration with other Hikvision devices for a unified security experience.
