Hikvision DS-PDC15-EG2-WE(B)

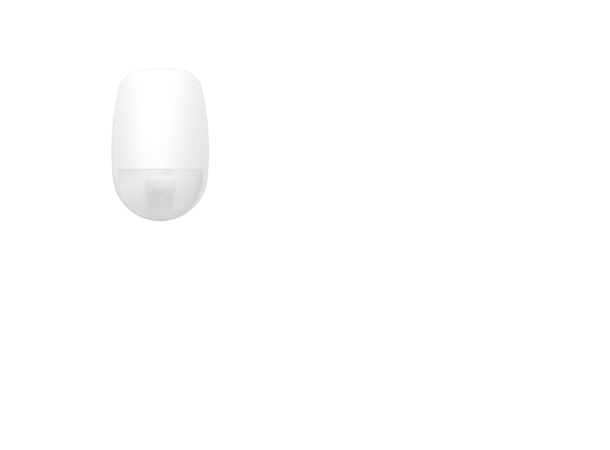

The Hikvision DS-PDC15-EG2-WE(B) is a two-way wireless PIR curtain detector designed for the AX PRO alarm system. It provides narrow-angle, long-range detection ideal for indoor perimeter protection such as windows, corridors, and walls. With advanced digital processing, tamper protection, and robust wireless communication, it ensures reliable and discreet intrusion detection.

Key Features

• Curtain Detection: 15 m range with 6.3° angle and 18 detection zones for focused coverage.
• Advanced Signal Processing: Digital processing and sealed optics for accurate detection.
• Secure Wireless Transmission: Tri-X protocol with AES-128 encryption and up to 1.6 km range (open area).
• Remote Configuration: Fully configurable via mobile app with multiple enrollment methods.
• Long Battery Life: Up to 5 years of standby time with a single CR123A battery.
• Tamper Protection: Front and rear tamper detection for enhanced security.
• Flexible Mounting: Wall mounting with optional accessories for ceiling or internal brackets.

Specifications

• Detection Method: Passive Infrared
• Detection Range: 15 m
• Detection Angle: 6.3°
• Detection Zones: 18
• Detectable Speed: 0.3 to 2 m/s
• Pet Immunity: None
• White Light Filter: 6500 lux
• Digital Temperature Compensation: Supported
• Creep Zone Protection: Supported
• Transmission Frequency: 868 MHz
• Transmission Range: Up to 1.6 km (open area)
• Encryption: AES-128
• Battery Type: CR123A × 1
• Battery Life: Up to 5 years (standby)
• Operating Temperature: -10 °C to 55 °C
• Humidity: 10% to 90% RH
• Dimensions: 65.5 mm × 103 mm × 48.5 mm
• Weight: 128 g
• Mounting Height: 2.4 to 3.6 m
• Mounting Method: Wall

Hikvision offers free IVMS-4200 and Hik-Connect apps for managing and monitoring AX PRO alarm systems. These tools provide real-time alerts, remote control, and integration with other Hikvision devices for a unified security experience.
