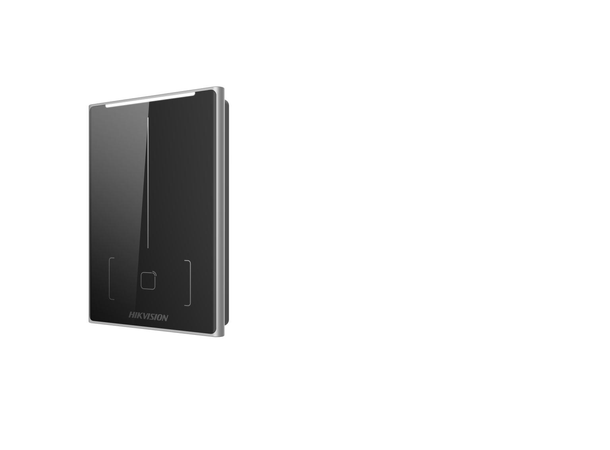

Hikvision DS-K1109DB

The Hikvision DS-K1109DB is a robust and versatile access control card reader designed for professional security systems. Supporting multiple card technologies and offering flexible connectivity through RS-485 and Wiegand interfaces, it ensures reliable authentication in both indoor and outdoor environments. With its IP65 weatherproof rating, tamper-proof protection, and efficient power design, it provides a secure and durable solution for modern access control installations.

Key Features

• Multi-Card Compatibility: Supports M1, DESFire, and Felica card types.
• Flexible Communication: Equipped with RS-485 and Wiegand (W26/W34) interfaces for seamless integration.
• Secure Authentication: Card-based access with optional Bluetooth module support.
• Outdoor-Ready Design: IP65 protection ensures reliable operation in harsh environments.
• Tamper Protection: Built-in tamper detection for added security.
• Audio Feedback: Integrated buzzer for status and event indications.

Specifications

• Card Types: M1, DESFire, Felica
• Interfaces: 1 × RS-485, 1 × Wiegand, 1 × Tamper input
• Power Supply: 12 VDC
• Power Consumption: = 14 W (with load), = 4 W (without load)
• Operating Temperature: –40 °C to 65 °C
• Operating Humidity: 0% to 90% (non-condensing)
• Protection Level: IP65
• Dimensions: 125 × 84.5 × 18 mm
• Weight: = 1 kg
• Installation: Wall mounting

The DS-K1109DB combines durability, flexible authentication options, and secure communication interfaces, making it an ideal choice for dependable access control in both indoor and outdoor environments.
