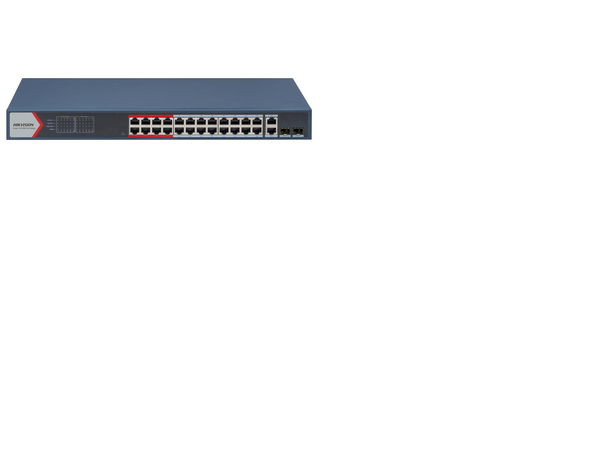

Hikvision DS-3E1326P-EI

The Hikvision DS-3E1326P-EI is a smart managed PoE switch designed for medium to large-scale surveillance and networking applications. With 24 PoE ports, 2 uplink ports, and intelligent management features, it ensures reliable data transmission and power delivery for IP cameras and other PoE-enabled devices.

Key Features

• Port Configuration: 24 × 10/100 Mbps PoE ports and 2 × 10/100/1000 Mbps uplink ports.
• PoE Support: IEEE 802.3af/at compliant with a total PoE budget of up to 370 W.
• Smart Management: Supports VLAN, QoS, SNMP, DHCP snooping, port isolation, and PoE watchdog.
• Surge Protection: 6 kV surge protection on all PoE ports for enhanced reliability.
• Loop Prevention: STP/RSTP/ERPS support for network stability.
• Remote Monitoring: Compatible with Hik-Partner Pro and Hik-Central Pro platforms.
• Silent Operation: Fanless design for quiet environments.

Specifications

• Switching Capacity: Approx. 7.2 Gbps
• Packet Forwarding Rate: Approx. 5.36 Mpps
• MAC Address Table: 8K
• Internal Cache: 4 Mbits
• Power Supply: 100–240 VAC
• Max. Power Consumption: = 400 W
• Operating Temperature: 0 °C to 40 °C
• Humidity: 10% to 90% RH (non-condensing)
• Installation: Desktop or rack-mounted
• Dimensions: Approx. 440 mm × 44 mm × 220 mm
