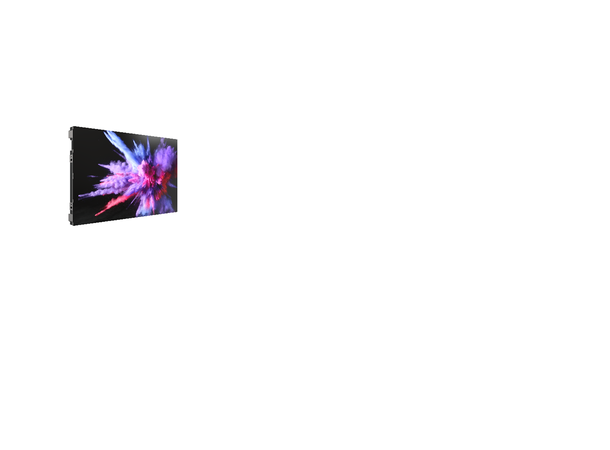

Hikvision DS-D4012BW-2FC
The Hikvision DS-D4012BW-2FC is a fine pixel pitch indoor full-color LED display designed for high-definition visual performance in control rooms, conference centers, and commercial environments. Featuring flip-chip COB technology, ultra-high contrast, and front maintenance design, it delivers vibrant, seamless visuals with energy-efficient operation and long-term reliability.
Key Features
- Fine Pixel Pitch: 1.25 mm for sharp, detailed image quality.
- Flip-Chip COB Technology: Enhances brightness, durability, and heat dissipation.
- High Contrast Ratio: 15000:1 for deep blacks and vivid colors.
- Wide Viewing Angle: 160° horizontal and vertical for consistent image quality across large spaces.
- Dynamic Brightness Adjustment: Intelligent engine algorithms optimize brightness and reduce power consumption.
- Front Maintenance: Easy access to lamp board, power supply, and receiving card for simplified servicing.
- Eco-Friendly Design: Lead-free solder, recyclable packaging, and low-carbon production standards.
Specifications
- Pixel Pitch: 1.25 mm
- Resolution: 480 × 270
- Cabinet Dimensions: 600 mm × 337.5 mm × 29.3 mm
- Weight: 3.4 kg
- Brightness: 600 cd/m²
- Color Temperature: 3000–10000 K adjustable
- Viewing Angle: 160° (H/V)
- Color Uniformity: = ± 0.003Cx, Cy
- Brightness Uniformity: = 97%
- Refresh Rate: 3840 Hz
- Grey Level: 16 bit
- Power Consumption: Max = 300 W/m², Avg = 100 W/m²
- Input Voltage: 100–240 VAC ±10%
- Operating Temperature: -10 °C to 40 °C
- Humidity: 10% to 90% RH (non-condensing)
- Cabinet Material: Aluminum die casting
Hikvision’s LED display solutions are engineered for precision, durability, and energy efficiency, offering seamless integration into professional environments with modular installation and remote control capabilities.
