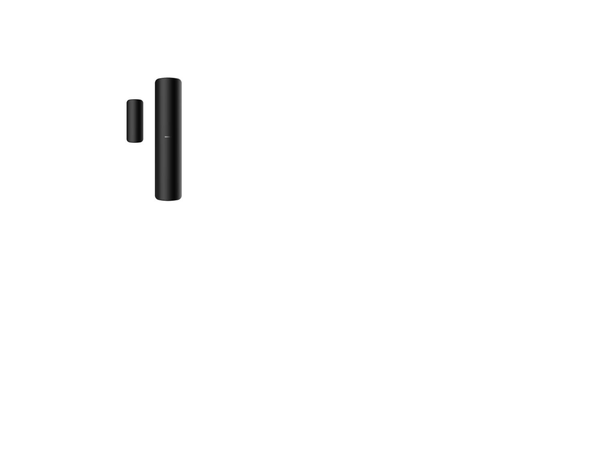

Hikvision DS-PDMC-EG2-WE(B)/BLACK

The Hikvision DS-PDMC-EG2-WE(B)/BLACK is a wireless magnetic contact detector designed for the AX PRO alarm system. It provides reliable detection of door or window openings, featuring a slim and discreet design ideal for indoor installations. With secure wireless communication, tamper protection, and long battery life, it ensures dependable perimeter protection.

Key Features

• Opening Detection: Magnetic contact sensor with a maximum detection gap of 43 mm.
• Slim Design: Compact and unobtrusive for seamless indoor installation.
• Secure Communication: Tri-X two-way RF protocol with AES-128 encryption and frequency hopping.
• Remote Configuration: Fully configurable via mobile app.
• LED Indicator: Blue LED for alarm status indication.
• Easy Installation: Multiple enrollment methods including power-up, remote ID, and QR code.
• Battery Life: Up to 5 years with a single CR123A battery.
• Tamper Protection: Front and rear tamper-proof design.

Specifications

• Detection Method: Opening contact
• Detection Gap: Up to 43 mm
• Transmission Frequency: 868 MHz
• Transmission Range: Up to 1.6 km (open area)
• Transmission Security: AES-128 encryption
• Battery Type: CR123A × 1
• Battery Life: Up to 5 years (standby)
• Operating Temperature: -10 °C to 55 °C
• Humidity: 10% to 90% RH (non-condensing)
• Dimensions (Main Unit): 24 mm × 104 mm × 24.4 mm
• Dimensions (Magnet): 13 mm × 34.4 mm × 11.4 mm
• Weight: 59 g
• Color: Black

As part of the AX PRO wireless intrusion alarm system, the DS-PDMC-EG2-WE(B)/BLACK offers discreet and effective perimeter protection, ensuring secure and responsive monitoring of entry points.
