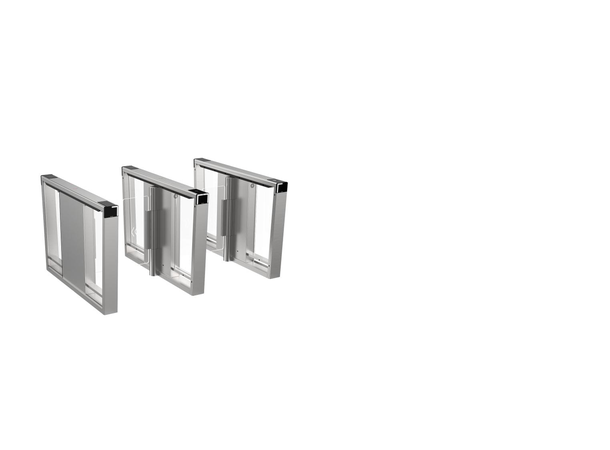

Hikvision DS-K3B530X-L/M

The Hikvision DS-K3B530X-L/M is a professional-grade swing barrier designed for secure and efficient access control in high-traffic environments. With advanced authentication options, anti-tailgating features, and durable construction, it is ideal for office buildings, transportation hubs, and other secure facilities. The system integrates seamlessly with access control platforms and supports multiple user verification methods.

Key Features

• Authentication Methods: Supports card (EM, M1, DESfire), QR code, and optional face recognition.
• Anti-Tailgating: Equipped with 14 pairs of IR light detectors for precise passage validation.
• High Throughput: Supports 30 to 60 persons per minute, depending on user behavior and configuration.
• Built-in Access Controller: Integrated controller for streamlined access management.
• Durable Build: Constructed with SUS304 stainless steel and acrylic or tempered glass barriers.
• Flexible Lane Width: Adjustable from 550 mm to 1100 mm to accommodate various access needs.
• Visual Indicators: LED lights indicate valid passage direction and status.
• Environmental Resistance: IPX4-rated for indoor and semi-outdoor use, with operating temperatures from -20 °C to 65 °C.

Specifications

• Motor Type: Servo motor
• MCBF: = 12 million cycles
• Card Capacity: 700,000
• Event Capacity: 700,000
• Lane Width: 550 mm to 1100 mm
• Barrier Height: 1.2 m to 1.8 m
• Power Supply: 100–240 VAC, 50/60 Hz
• Power Consumption: 55 W per lane
• Working Humidity: 0% to 95% (non-condensing)
• Dimensions (Without Packaging): 1500 mm × 130 mm × 1000 mm
• Weight: Left: 62.78 kg, Middle: 82.4 kg, Right: 64.78 kg
• Material: SUS304 stainless steel, acrylic or tempered glass
• Protection Level: IPX4

The DS-K3B530X-L/M swing barrier is part of Hikvision’s advanced speed gate solutions, offering secure, efficient, and user-friendly access control for modern facilities.
