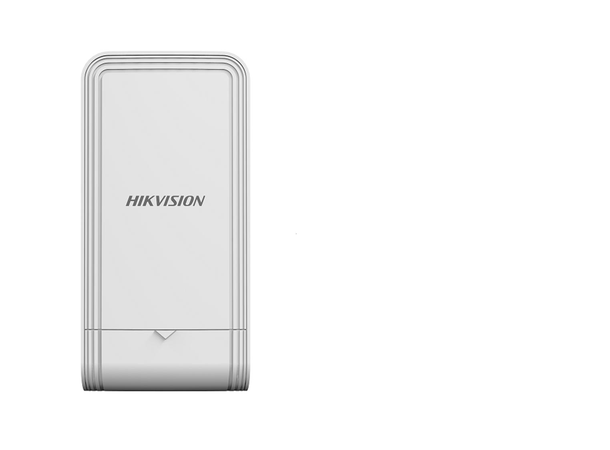

Hikvision DS-3WF1000S-EI/2N

The Hikvision DS-3WF1000S-EI/2N is a high-performance outdoor wireless bridge designed for long-range point-to-point and point-to-multipoint transmission. With a 1 km range, 300 Mbps throughput, and built-in 7 dBi MIMO antennas, it ensures stable and secure wireless connectivity for surveillance and networking applications in challenging environments.

Key Features

• Wireless Transmission: Up to 1 km range with 300 Mbps throughput using 2.4 GHz 802.11n (2×2 MIMO).
• Integrated Antennas: Built-in 7 dBi directional antennas with 60° horizontal and 50° vertical beamwidth.
• PoE Support: Passive PoE input (12–24 VDC) with max. 4.5 W power consumption.
• Smart Management: Remote configuration, bridge alignment, and spectrum scanning via Hik-Partner Pro.
• Robust Design: IP55-rated enclosure with -30 °C to 60 °C operating temperature range.
• Security: WPA2-PSK encryption and hidden SSID support.
• Plug and Play: Auto/manual channel selection and visualized topology management.

Specifications

• Wireless Standard: IEEE 802.11b/g/n (2×2 MIMO)
• Frequency Band: 2400 MHz – 2483.5 MHz
• Max. Transmission Rate: 300 Mbps
• Throughput: PTP: 70–90 Mbps (up to 1 km); PTMP (1 to 4): 40 Mbps (1 km)
• Network Interface: 2 × 10/100 Mbps RJ45
• Power Supply: 12–24 VDC Passive PoE
• Power Consumption: Max. 4.5 W
• Dimensions: 90.8 mm × 187.87 mm × 57.87 mm
• Weight: 0.26 kg per device
• Installation: Pole mounting
• Operating Temperature: -30 °C to 60 °C
• Ingress Protection: IP55
• Management Tools: Web, iVMS-4200, Hik-Partner Pro

The DS-3WF1000S-EI/2N is a reliable and cost-effective solution for extending network coverage in outdoor environments, ideal for connecting remote IP cameras or bridging network segments across long distances.
