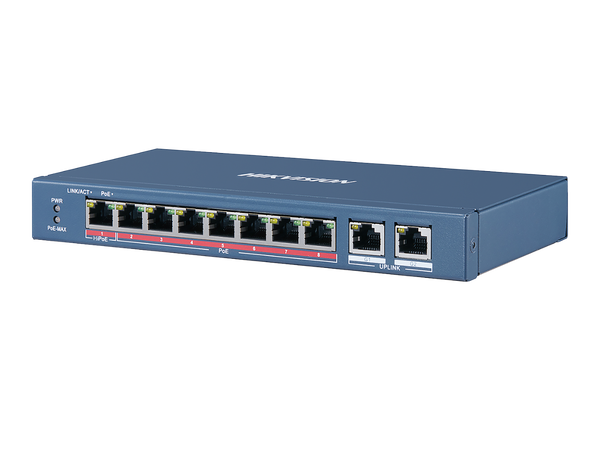

Hikvision DS-3E0310HP-E

The Hikvision DS-3E0310HP-E is an 8-port Fast Ethernet unmanaged PoE switch designed for small to medium-sized surveillance and networking applications. It supports intelligent PoE management, long-range transmission, and robust surge protection, making it ideal for reliable and efficient power and data delivery in demanding environments.

Key Features

• PoE Support: 8 × 10/100 Mbps PoE ports and 2 × Gigabit RJ45 uplink ports.
• Hi-PoE Capability: Port 1 supports up to 90 W (IEEE 802.3bt); Ports 2–8 support up to 30 W (IEEE 802.3af/at).
• PoE Budget: Total power budget of 110 W with intelligent power allocation.
• Long-Range Transmission: Up to 300 meters on all PoE ports (performance may vary by camera and cable).
• Surge Protection: 6 kV surge protection for enhanced reliability in harsh environments.
• Fan-Free Design: Metal housing with silent, fanless operation.
• VIP Port Function: Prioritizes data on selected ports when bandwidth is limited.

Specifications

• Switching Capacity: 5.60 Gbps
• Packet Forwarding Rate: 4.17 Mpps
• MAC Address Table: 8K
• Internal Cache: 4 Mbits
• Power Supply: 48 V DC, 2.5 A
• Max. Power Consumption: 120 W (10 W idle)
• Installation: Wall-mounted or desktop
• Operating Temperature: 0 °C to 40 °C
• Storage Temperature: -40 °C to 85 °C
• Humidity: 5% to 95% RH (non-condensing)
• Dimensions: 217.6 mm × 27.8 mm × 103.55 mm
• Weight: Net: 0.55 kg, Gross: 1.22 kg
• Certifications: CE, FCC, UL, RoHS

The DS-3E0310HP-E is a reliable and cost-effective solution for powering and connecting IP cameras and other PoE-enabled devices in surveillance and networking setups.
