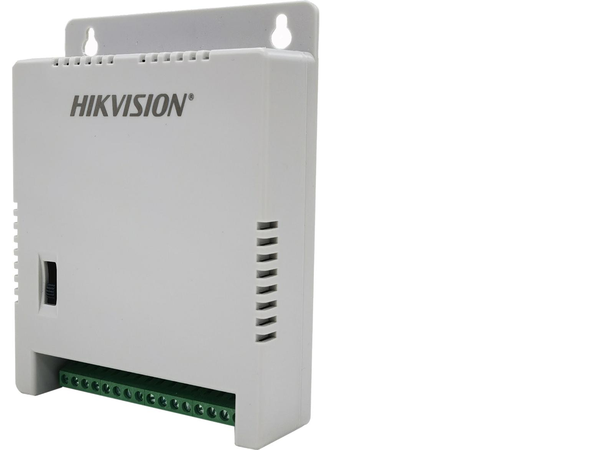

Hikvision DS-2FA1205-C8 (EUR)

The Hikvision DS-2FA1205-C8 (EUR) is a multi-channel switching mode power supply (SMPS) designed to power multiple CCTV cameras efficiently. With 8 output channels, built-in protection features, and wide voltage input support, it ensures stable and safe power delivery in surveillance systems.

Key Features

• Multi-Channel Output: 8 channels with 12 VDC / 1 A max per channel, total power output up to 60 W.
• Protection Features: Over-current, short-circuit, and over-voltage protection for safe operation.
• Wide Input Range: Supports 150 to 285 VAC input voltage, 47–63 Hz frequency.
• Compact Design: Space-saving form factor suitable for various installation environments.
• LED Indicator: Green LED for power status monitoring.
• Cable Length Compensation: Adjustable output voltage for different cable lengths (12 VDC, 13.5 VDC, 15 VDC).

Specifications

• Input Voltage: 150–285 VAC
• Output Voltage: 12 VDC per channel (adjustable)
• Max Output Current: 1 A per channel, 5 A total
• Ripple & Noise: = 150 mVp-p
• AC Input Connector: C8
• DC Output Connector: Grid terminal
• Operating Temperature: 0 °C to 40 °C
• Storage Temperature: -40 °C to 80 °C
• Humidity: 10% to 95% RH (non-condensing)
• Dimensions: 144 mm × 109.5 mm × 33 mm
• Color: White

The DS-2FA1205-C8 (EUR) is a reliable and efficient power solution for multi-camera CCTV systems, offering safety, flexibility, and ease of installation in a compact design.
