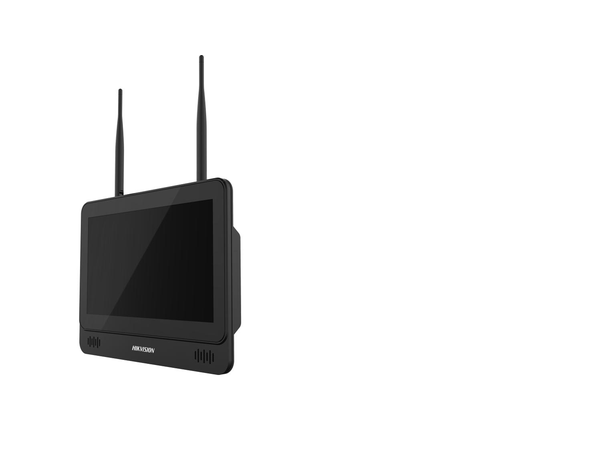

Hikvision DS-7604NI-L1/W

The Hikvision DS-7604NI-L1/W is a compact 4-channel all-in-one Network Video Recorder (NVR) with a built-in 11.6-inch LCD display, designed for small-scale surveillance applications. It supports Wi-Fi-enabled IP cameras and provides straightforward, plug-and-play operation, making it ideal for homes, small offices, and retail environments where space and simplicity are priorities.

Key Features

• Integrated Display: 11.6-inch TFT LCD with 1366 × 768 resolution.
• Video Decoding: Supports 4 channels at 4 MP (15 fps) or 4 channels at 1080p (30 fps).
• Video Compression: H.265+/H.265/H.264+/H.264 for efficient storage and bandwidth usage.
• Camera Inputs: Supports up to 4 IP cameras, including Wi-Fi-enabled models.
• Audio Support: 1-way audio input and output.
• Storage: 1 SATA interface, supporting up to 6 TB HDD.
• Connectivity: 1 × RJ45 10/100 Mbps Ethernet port and built-in Wi-Fi (2.4 GHz).
• Mounting Flexibility: Can be placed on a desk or mounted on a wall.

Specifications

• Dimensions: 300 × 230 × 46.3 mm
• Weight: Approximately 1 kg (without HDD)
• Display: 11.6" TFT LCD, 1366 × 768 resolution
• Power Supply: 12 VDC, 1.5 A
• Operating Temperature: 0?°C to 40?°C
• Humidity: 10% to 90%

The DS-7604NI-L1/W is a versatile and user-friendly NVR solution for compact environments, combining built-in display convenience with support for wired and wireless IP cameras for reliable surveillance.
