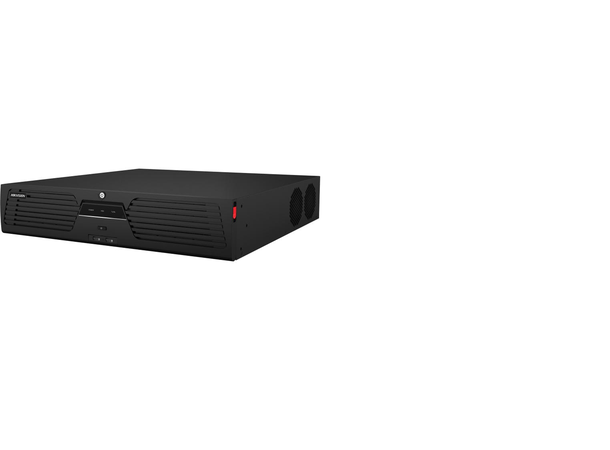

Hikvision DS-9664NI-M8/R

The Hikvision DS-9664NI-M8/R is a 64-channel Ultra-Series 8K network video recorder, built to handle large IP camera installations with high bandwidth and flexible display outputs. It offers robust video decoding, extensive storage options with RAID support, and is ideal for enterprise and industrial video surveillance applications. :contentReference[oaicite:0]{index=0}

Key Features

• 64-Channel Support: Up to 64 IP cameras. :contentReference[oaicite:1]{index=1}
• High Bandwidth Capacity: 400 Mbps incoming and 400 Mbps outgoing bandwidth to ensure consistent performance. :contentReference[oaicite:2]{index=2}
• 8K / Dual 4K Outputs: HDMI 1 supports 8K @ 30Hz and 4K @ 60Hz; HDMI 2 also supports 4K output. Multiple VGA outputs too. :contentReference[oaicite:3]{index=3}
• Extensive Decoding Capability: Capable of decoding combinations like 2-channels at 32 MP + 10 channels at 8 MP etc. :contentReference[oaicite:4]{index=4}
• Reliable Storage & RAID Support: 8 SATA bays, 1 eSATA; supports RAID levels 0, 1, 5, 6, 10 for redundancy. :contentReference[oaicite:5]{index=5}
• Special Camera Compatibility: Works with people counting, ANPR (license plate recognition), fisheye cameras, etc. :contentReference[oaicite:6]{index=6}
• Redundant Power Supply & Sturdy Design: Built with reliability in mind; 2U rack chassis; designed to operate in challenging environments. :contentReference[oaicite:7]{index=7}

Specifications

• IP Video Inputs: 64 channels :contentReference[oaicite:8]{index=8}
• Encoding/Decoding Formats: H.265+, H.265, H.264+, H.264 :contentReference[oaicite:9]{index=9}
• Recording Resolution: Up to 32 MP :contentReference[oaicite:10]{index=10}
• Decoding Capability: e.g. 2 ch @ 32 MP (30 fps) + 10 ch @ 8 MP (30 fps) etc. :contentReference[oaicite:11]{index=11}
• Video Outputs:
  • HDMI1: Up to 8K @ 30Hz or 4K @ 60Hz :contentReference[oaicite:12]{index=12}
  • HDMI2: Up to 4K; when HDMI1 is at 8K, HDMI2 max is 1080p. :contentReference[oaicite:13]{index=13}
  • VGA1/VGA2: 1080p typically. :contentReference[oaicite:14]{index=14}
  • CVBS: 1 channel BNC output. :contentReference[oaicite:15]{index=15}
• Network Interfaces: 2 × RJ-45 10/100/1000 Mbps Ethernet ports :contentReference[oaicite:16]{index=16}
• RAID & Storage: RAID 0,1,5,6,10; 8 SATA + 1 eSATA; each disk up to ~16 TB capacity. :contentReference[oaicite:17]{index=17}
• Auxiliary Interfaces: RS-485, RS-232; USB front and rear; alarm inputs/outputs; controllable 12 V DC output. :contentReference[oaicite:18]{index=18}
• Power Supply: 100-240 VAC, redundant power modules. :contentReference[oaicite:19]{index=19}
• Power Consumption: = 50 W (without HDDs) :contentReference[oaicite:20]{index=20}
• Operating Temperature & Humidity: -10 °C to 55 °C; relative humidity 10-90 % :contentReference[oaicite:21]{index=21}
• Chassis / Dimensions: 2U rack; approx. 445 × 540 × 93 mm; = 10 kg (without HDDs) :contentReference[oaicite:22]{index=22}

The DS-9664NI-M8/R delivers high-density, high-performance recording for demanding installations. With its 8K output options, robust storage, and support for special camera types, it is well suited to environments where both scale and flexibility are required.
