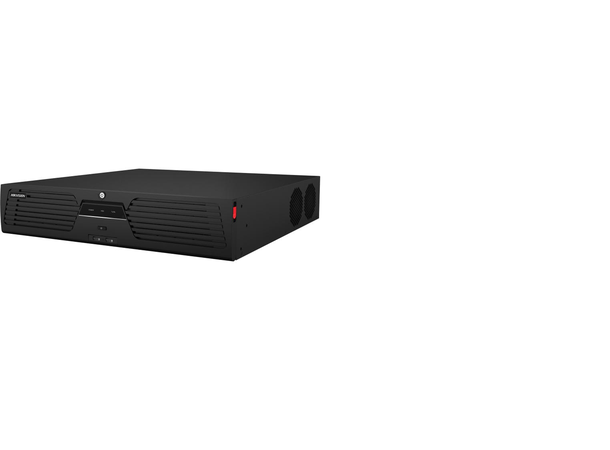

Hikvision DS-9632NI-M8/R

The Hikvision DS-9632NI-M8/R is a 32-channel 2U 8K Ultra-Series network video recorder, built for high-density surveillance systems. With strong decoding capacity, high ingress/egress bandwidth, RAID storage, redundant power supply, and flexible display outputs, it’s suited for demanding residential, commercial, or industrial monitoring setups.

Key Features

• 32-Channel Support: Supports up to 32 IP cameras. :contentReference[oaicite:0]{index=0}
• High Bandwidth Capacity: 320 Mbps incoming and 400 Mbps outgoing bandwidth. :contentReference[oaicite:1]{index=1}
• 8K or Dual 4K Outputs: Dual HDMI and VGA outputs, with HDMI1 capable of 8K30 and HDMI2 up to 4K60. :contentReference[oaicite:2]{index=2}
• Special Camera Compatibility: Supports people counting, ANPR (automatic number plate recognition), fisheye cameras. :contentReference[oaicite:3]{index=3}
• Reliable Storage: RAID 0,1,5,6,10 with N+M hot-spare; multiple SATA and eSATA interfaces. :contentReference[oaicite:4]{index=4}
• High-Availability Design: Redundant power supply; external speaker support; robust auxiliary interfaces. :contentReference[oaicite:5]{index=5}

Specifications

• IP Video Inputs: 32 channels :contentReference[oaicite:6]{index=6}
• Decoding Formats: H.265+, H.265, H.264+, H.264 :contentReference[oaicite:7]{index=7}
• Recording Resolutions: Up to 32 MP, 24 MP, 12 MP, 8 MP, down to VGA & CIF etc. :contentReference[oaicite:8]{index=8}
• Decoding Capability: e.g. 2 channels @ 32 MP + 2 channels @ 8 MP / 10 channels @ 8 MP / 20 channels @ 4 MP / 40 channels @ 1080p (all at 30 fps) :contentReference[oaicite:9]{index=9}
• Video Outputs:
  • HDMI1: up to 8K (7680×4320)/30Hz :contentReference[oaicite:10]{index=10}
  • HDMI2: up to 4K/60Hz :contentReference[oaicite:11]{index=11}
  • VGA1 & VGA2: 1080p/60Hz :contentReference[oaicite:12]{index=12}
  • CVBS: 1 BNC output for analog signal :contentReference[oaicite:13]{index=13}
• Network Interfaces: 2 × RJ-45 10/100/1000 Mbps Ethernet ports :contentReference[oaicite:14]{index=14}
• Auxiliary Interfaces: RS-485, RS-232, USB (front & rear), 12V controllable output, alarm in/out, SATA & eSATA for storage. :contentReference[oaicite:15]{index=15}
• Storage Capacity: Up to ~16 TB per disk; 8 × SATA + 1 × eSATA. RAID support. :contentReference[oaicite:16]{index=16}
• Power Supply: 100-240 VAC, redundant power supply :contentReference[oaicite:17]{index=17}
• Power Consumption: = 50 W (without HDDs) :contentReference[oaicite:18]{index=18}
• Operating Conditions: -10 °C to 55 °C; humidity 10-90% :contentReference[oaicite:19]{index=19}
• Dimensions & Weight: 2U chassis, 445 × 540 × 93 mm; = 10 kg (without HDD) :contentReference[oaicite:20]{index=20}
• Certifications: CE, FCC, EN standards :contentReference[oaicite:21]{index=21}

The DS-9632NI-M8/R offers a balanced blend of high channel count, strong decoding performance, and flexible storage/output options, making it a solid choice for environments where both scale and reliability are critical.
