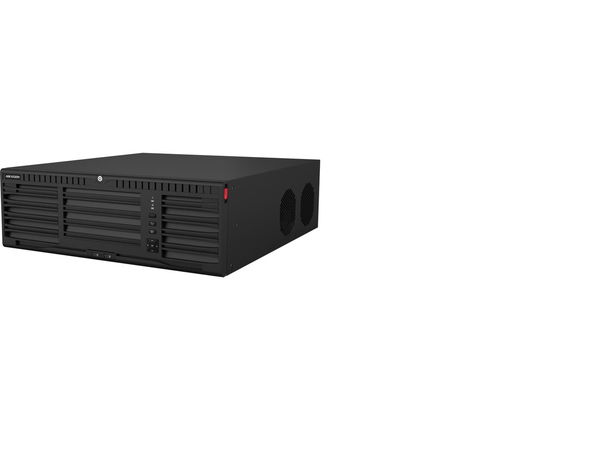

Hikvision DS-9664NI-M16/R

The Hikvision DS-9664NI-M16/R is a 64-channel 8K M-Series network video recorder designed for demanding surveillance systems. It offers high throughput, flexible display outputs, robust storage options with RAID & hot spares, and supports a variety of special cameras. Perfect for large-scale commercial or industrial monitoring.

Key Features

• Channel Capacity: Supports up to 64 IP cameras.
• High Bandwidth: 400 Mbps incoming and 400 Mbps outgoing network capacity.
• Display Outputs: 2 × HDMI and 2 × VGA outputs (different sources), supporting up to 8K on HDMI1 or dual 4K.
• Advanced Decoding: Can handle combinations like 2 channels at 32 MP, 10 channels at 8 MP, etc.
• Special Camera Support: Compatible with people-counting, ANPR (license plate recognition), fisheye, etc.
• Redundant & Reliable Storage: 16 SATA hot-plug bays + eSATA, support for RAID (0,1,5,6,10) and N+M hot spare.
• Auxiliary Interfaces & Audio: 1 RCA audio input, 2 RCA outputs, 1 two-way audio, alarm I/O, serial ports, USB 2.0 & 3.0, controllable 12V output.
• Power & Build: Redundant 100-240 VAC supply; 3U chassis; operates in -10 °C to 55 °C; power consumption = 50 W (without HDDs).

Specifications

• IP Video Inputs: 64-channel.
• Decoding Format: H.265 / H.265+ / H.264 / H.264+
• Recording Resolutions Supported: 32 MP / 24 MP / 12 MP / 8 MP / 7 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / and lesser SD formats.
• Simultaneous Playback: 16 channels.
• Video Outputs:
  • HDMI1: Up to 8K (7680×4320) @30Hz, or 4K @60Hz etc.
  • HDMI2: Up to 4K, with lower max when HDMI1 is 8K.
  • VGA1 & VGA2: 1080p etc.
  • CVBS: 1 BNC channel (PAL / NTSC)
• Network Interfaces: 2 × RJ-45 gigabit Ethernet.
• SATA / Storage Capacity: 16 SATA hot-plug bays + 1 eSATA; supports up to 16 TB per disk.
• Alarm I/O: 16 inputs / 9 outputs.
• USB Ports: Front: 2 × USB 2.0; Rear: 2 × USB 3.0.
• RS-485 / RS-232: 1 each.
• General Dimensions & Weight: 3U chassis, 445 × 496 × 150 mm, ? 12.5 kg (without HDDs).
• Operating Temperature/Humidity: -10 °C to 55 °C; 10-90%.
• Power Consumption: = 50 W (without hard drives).
• Certifications: CE, FCC etc.

The DS-9664NI-M16/R is a powerful recorder for large-scale surveillance setups, offering high resolution, strong decoding throughput, and versatile storage/display options. It suits environments where you need high camera counts, reliable RAID features, and support for special camera functions like ANPR and people-counting.
