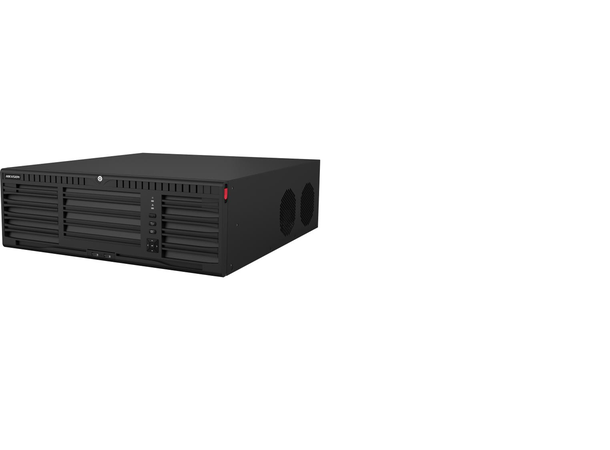

Hikvision DS-9632NI-M16/R

The Hikvision DS-9632NI-M16/R is a 32-channel 8K M-Series network video recorder in a 3U chassis designed for high-end, large-scale surveillance setups. It supports high decoding capacities, flexible display outputs, redundancy in power and storage, and integration with special cameras like ANPR, fisheye, and people counting.

Key Features

• 32-Channel Support: Up to 32 IP camera inputs.
• High Decoding Capacity: Eg. 2 channels at 32 MP, or up to 40 channels at 1080p.
• Strong Bandwidth: 320 Mbps incoming, 400 Mbps outgoing.
• Flexible Video Outputs: 2 HDMI (different source) + 2 VGA outputs; HDMI1 supports up to 8K @ 30Hz; HDMI2 up to 4K.
• Special Camera Compatibility: Supports ANPR, people-counting, fisheye cameras.
• Redundant & Reliable Storage: 16 SATA hot-plug bays + eSATA; RAID levels 0,1,5,6,10; supports N+M hot spare.
• Auxiliary Features & Interfaces: Alarm I/O (16 in / 9 out), USB ports (front & rear), serial RS-485 / RS-232, CTRL 12 V output, RCA audio input/output.
• Power & Reliability: Redundant power supply; power consumption = 50 W (without hard drives); operating temperature -10 °C to 55 °C.

Specifications

• IP Video Inputs: 32-channels
• Decoding Format: H.265, H.265+, H.264, H.264+
• Recording Resolutions: 32 MP, 24 MP, 12 MP, 8 MP, 7 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, etc.
• Synchronous Playback: 16 channels
• Network Interfaces & Protocols: 2 × RJ-45 10/100/1000 Mbps; supports IPv4/IPv6, ONVIF 2.5, RTSP, HTTP/HTTPS, SNMP, etc.
• Video Outputs:
  • HDMI1: up to 8K @ 30Hz; also 4K/60Hz etc.
  • HDMI2: up to 4K (limited to 1080p when HDMI1 is in 8K)
  • VGA1 & VGA2: up to 1080p (various lower resolutions)
  • CVBS (BNC) output: standard PAL/NTSC composite resolution.
• Storage & HDD Interfaces: 16 SATA hot-plug bays + 1 eSATA; up to 16 TB per disk.
• Alarm / Auxiliary I/O: 16 alarm inputs; 9 alarm outputs; serial ports RS-485 & RS-232; USB (front 2 × USB2.0; rear 2 × USB3.0); 12 V controllable alarm output.
• Power Supply: 100-240 VAC, redundant power supply
• Power Consumption: = 50 W (without HDDs)
• Operating Conditions: -10 °C to +55 °C; humidity 10-90 %
• Chassis / Dimensions: 3U chassis; 445 × 496 × 150 mm; weight = 12.5 kg (without HDDs)
• Certifications: CE, FCC, etc.

The DS-9632NI-M16/R is ideal for environments requiring both scale and flexibility—where you need a high channel-count NVR with robust bandwidth, multiple display output options, reliable storage with RAID and redundancy, and support for advanced, special-purpose camera types.
