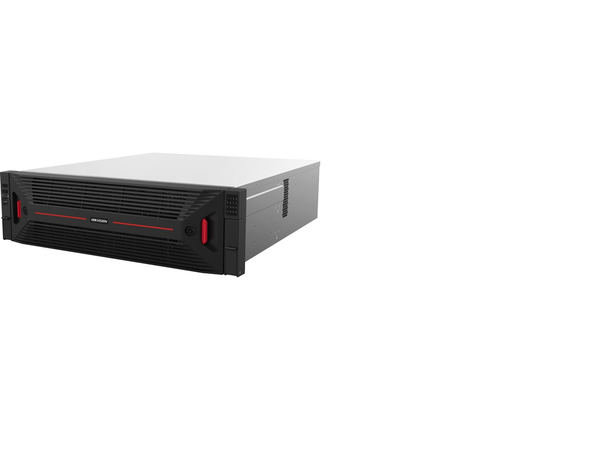

Hikvision DS-96128NI-H16R

The Hikvision DS-96128NI-H16R is a 128-channel 8K Super NVR in a 3U chassis, designed for large-scale IP surveillance systems. It offers high channel count, massive decoding capabilities, flexible video outputs, RAID with hot spare storage, and support for special cameras such as ANPR, people counting, and fisheye. Ideal for mission-critical enterprise, city surveillance, and infrastructure installations.

Key Features

• 128-Channel Support: Up to 128 IP cameras.
• High Bandwidth: 1 Gbps incoming and outgoing bandwidth.
• Decoding Capability: High-resolution decoding for multiple channels.
• Special Camera Support: Compatible with ANPR, people counting, and fisheye cameras.
• Reliable Storage: 16 SATA hot-plug bays + 1 eSATA; RAID 0,1,5,6,10 with N+1 hot spare.
• Flexible Video Outputs: HDMI, VGA, DisplayPort outputs; up to 4K on HDMI, up to 8K on DP outputs.
• Power & Build: Redundant power supply; =?75 W (without HDDs).

Specifications

• IP Video Inputs: 128 channels.
• Incoming / Outgoing Bandwidth: 1 Gbps.
• Decoding Format: H.265+, H.265, H.264+, H.264.
• Recording Resolutions: 32 MP, 24 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p.
• Synchronous Playback: 16 channels.
• Video Outputs:
  • HDMI1 & HDMI2: up to 4K.
  • DisplayPort: up to 8K.
  • VGA: up to 1080p.
• Storage: 16 SATA hot-plug bays + 1 eSATA; up to 20 TB per HDD.
• Alarm & Auxiliary I/O: 16 inputs / 8 outputs; RS-485 / RS-232; USB 2.0 front & USB 3.0 rear.
• Power Supply & Consumption: 100–240 VAC, redundant; =?75 W (without HDDs).
• Operating Conditions: 0?°C to 50?°C; 10–90% humidity.
• Chassis / Dimensions: 3U chassis; 447 × 489 × 133 mm; weight =?25 kg (without HDDs).

The DS-96128NI-H16R is a high-performance NVR designed for ultra-large installations requiring maximum channel count, strong decoding, and robust storage.
