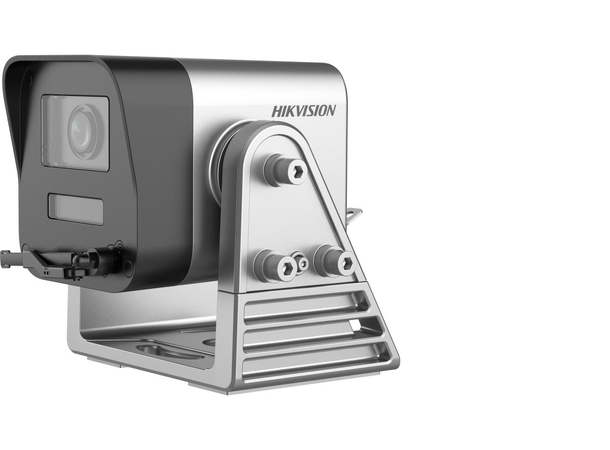

Hikvision DS-2XV6646G0-LIZH(R)S

The Hikvision DS-2XV6646G0-LIZH(R)S is a high-performance 4 MP varifocal network camera designed for demanding industrial environments such as gantry cranes and other outdoor applications. With advanced imaging technologies, robust build quality, and intelligent analytics, it ensures reliable surveillance in challenging conditions.

Key Features

• Imaging: 4 MP resolution with excellent low-light performance using DarkFighter technology.
• Illumination: Dual IR and white light illuminators with up to 80 m IR and 50 m white light range.
• Lens: Motorized varifocal lens options (2.8–12 mm or 8–32 mm) with auto-iris and wide field of view.
• Durability: IP68-rated housing with built-in wiper (-R model) for dust and water resistance.
• Power: Supports 9–36 VDC input and PoE (IEEE 802.3at) for flexible installation.
• Smart Features: Perimeter protection, dynamic area detection, and deep learning analytics.
• Integration: Compatible with Hikvision HEOP platform, iVMS-4200, Hik-Connect, and Hik-Central.

Specifications

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Resolution: 2560 × 1440
• Video Compression: H.265/H.264/H.265+/H.264+
• Frame Rate: Up to 60 fps
• Audio: Mono sound with multiple codec support (G.711, MP2L2, AAC-LC, etc.)
• Network: 1000M Ethernet, ONVIF, ISAPI, SDK, ISUP protocols
• Storage: microSD card slot (up to 512 GB), NAS, ANR
• Operating Temperature: -40 °C to 60 °C
• Mounting: Aviation plug interface, suitable for industrial setups

The DS-2XV6646G0-LIZH(R)S is a rugged and intelligent surveillance solution tailored for industrial and outdoor environments, offering superior image quality, smart analytics, and seamless integration with Hikvision’s ecosystem.
