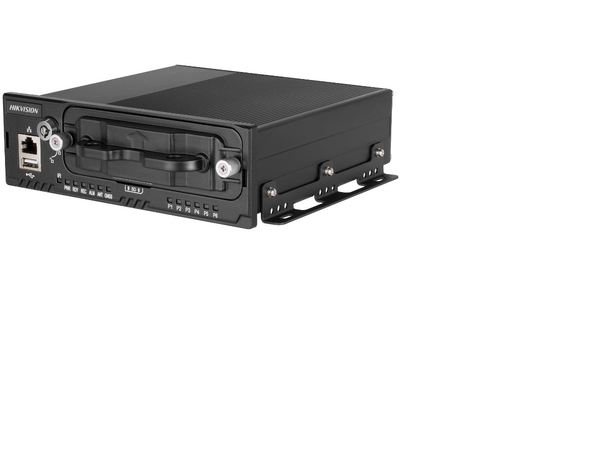

Hikvision AE-MN5043-M12

The Hikvision AE-MN5043-M12 is a compact and rugged mobile network video recorder designed for vehicle-based surveillance in public transport, logistics, and emergency services. It supports multiple IP camera inputs, GPS tracking, wireless communication, and robust data protection features, making it ideal for dynamic and demanding environments.

Key Features

• Video Input: Supports up to 8 IP camera channels (4 via PoE, 4 via PoE switch) with up to 5 MP resolution.
• Storage: Dual 2.5" HDD/SSD bays supporting up to 4 TB SSD and 2 TB HDD, plus SD card slot up to 512 GB.
• Connectivity: Optional 4G and Wi-Fi modules, GNSS (GPS & GLONASS) for real-time tracking and location tagging.
• Power Management: Wide input range (9–36 VDC), super-capacitor for sudden power loss protection, and scheduled startup/shutdown.
• Data Security: Software-based firewall, dual-stream recording, and redundant backup support.
• Durability: Fanless aluminum die-cast chassis, anti-vibration design, and operating temperature range from -25 °C to +70 °C.
• Integration: Compatible with Hikvision CMS platforms, web browser access, and touchscreen control.

Specifications

• Video Compression: H.265/H.264
• Audio Compression: G.711a/u, G.722.1, G.726
• Power Input: 9–36 VDC
• Operating Temperature: -25 °C to +70 °C
• Mounting: Aviation connectors and compact form factor (206 × 225.4 × 60.1 mm)
• Certifications: EN50155, EN45545, E-MARK, CE, FCC

The AE-MN5043-M12 offers a reliable and intelligent mobile NVR solution for fleet and transport surveillance, combining advanced features with rugged design and seamless integration into Hikvision’s ecosystem.
