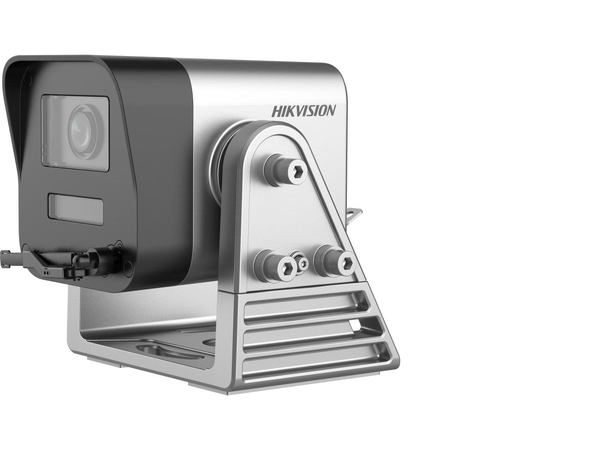

Hikvision DS-2XV6646G0-LIZH(R)S

The Hikvision DS-2XV6646G0-LIZH(R)S is a 4 MP varifocal network camera engineered for gantry cranes and other industrial applications. It delivers high-quality imaging in extreme environments, featuring advanced low-light performance, robust build quality, and intelligent analytics powered by deep learning.

Key Features

• Imaging: 4 MP resolution with DarkFighter technology for excellent low-light performance.
• Illumination: Dual IR and white light illuminators with up to 80 m IR and 50 m white light range.
• Lens: Motorized varifocal lens (2.8–12 mm or 8–32 mm) with auto-iris and wide field of view.
• Durability: IP68-rated housing, built-in wiper (-R model), and wide operating temperature range (-40 °C to 60 °C).
• Power: Supports 9–36 VDC and PoE (IEEE 802.3at) for flexible installation.
• Smart Features: Perimeter protection, dynamic area detection, and deep learning analytics with up to 64 targets.
• Integration: Compatible with Hikvision HEOP, iVMS-4200, Hik-Connect, and Hik-Central platforms.

Specifications

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Resolution: 2560 × 1440
• Video Compression: H.265/H.264/H.265+/H.264+
• Frame Rate: Up to 60 fps
• Audio: Mono sound with multiple codec support (G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3)
• Network Interface: 1000M Ethernet port with M12 aviation plug
• Storage: microSD card slot (up to 512 GB), NAS, ANR
• Power Input: 9–36 VDC or PoE (IEEE 802.3at)
• Operating Temperature: -40 °C to 60 °C
• Mounting: Compact form factor (155 × 177 × 171 mm), suitable for industrial setups

The DS-2XV6646G0-LIZH(R)S is a rugged and intelligent surveillance solution tailored for industrial and outdoor environments, offering superior image quality, smart analytics, and seamless integration with Hikvision’s ecosystem.
