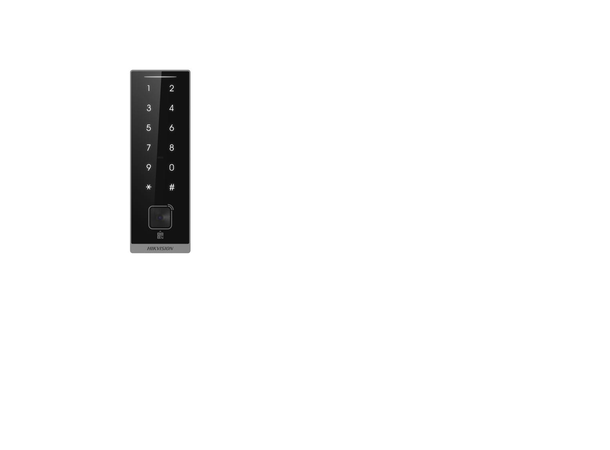

DS-K1105EDKB-QR Pro Card Reader

The Hikvision DS-K1105EDKB-QR is a versatile access control reader that supports multiple authentication methods including QR code scanning, card swiping, PIN entry, and Bluetooth. Designed for high-security environments, it integrates advanced features for flexible and secure access management.

Key Features

• Supports RS-485, Wiegand (W26/W34), and OSDP protocols
• Built-in M1 and EM card reading module (13.56 MHz & 125 KHz)
• Supports Desfire card reading
• Integrated buzzer for reading status indication
• Supports online firmware upgrade
• Authentication methods: card swiping, PIN, QR code, Bluetooth
• Touch panel operation
• Occlusion detection and gesture-based door opening via Bluetooth

Specifications

• Interface: RS-485, Wiegand
• Card Types: M1 card, EM card, DESfire card
• Power Supply: DC 12V
• Power Consumption: =6W
• Working Temperature: -40°C to +65°C
• Working Humidity: 0% to 90%
• Protection Level: IP66
• Dimensions: 139 × 46 × 21.2 mm (5.47 × 1.81 × 0.83 inch)
• Installation: Wall mounting
• Weight: 167.7g
• Buzzer: Supported
• QR Code Recognition: Supported
• Barcode Recognition: Not supported
