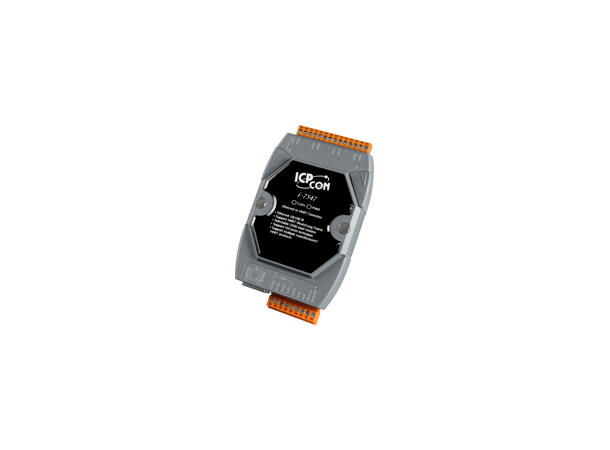

I-7547
Introduction: The I-7547 is an Ethernet to HART converter designed to act as either a HART master or HART slave. It allows users to connect HART devices to a PC via Ethernet using the VxComm utility, enabling access through a virtual COM port. This simplifies data collection and processing in HART networks. The module supports configuration via the HC_Tool utility and can simulate HART slave devices using the HDS utility, making it ideal for development and testing environments.
Ethernet to HART Converter – ICP DAS
Key Features
- Dual Role: Operates as HART master or HART slave
- HART Support: Supports short/long frame, burst mode, point-to-point and multi-drop modes
- Device Capacity: Connects up to 15 HART slave devices
- Dual HART Masters: Allows two HART masters per channel
- Utility Software: Includes HC_Tool for configuration and HDS for simulation
- Web Interface: Built-in web server for network settings
- VxComm Support: Enables virtual COM port access
- FDT Compatibility: Supports PACTware, FieldCare, and Siemens PDM
Specifications
- HART Channels: 4 channels with 2-pin screw terminal blocks
- Terminator Resistor: Selectable 250 O per port
- Isolation: 500 VDC
- ESD Protection: 4 KV contact for each terminal
- Ethernet: 10/100 Base-TX with Auto MDI/MDI-X
- Power Input: +10 ~ +30 VDC (unregulated)
- Power Protection: Reverse polarity and over-voltage brown-out protection
- Power Consumption: Max 1.5 W
- LED Indicators: PWR (Power), TxRx (Data activity)
- Installation: DIN-Rail or wall mounting
- Dimensions: 123 x 72 x 35 mm (H x W x D)
- Operating Temperature: -25°C to +75°C
- Storage Temperature: -30°C to +80°C
- Humidity: 5% to 95% RH, non-condensing
