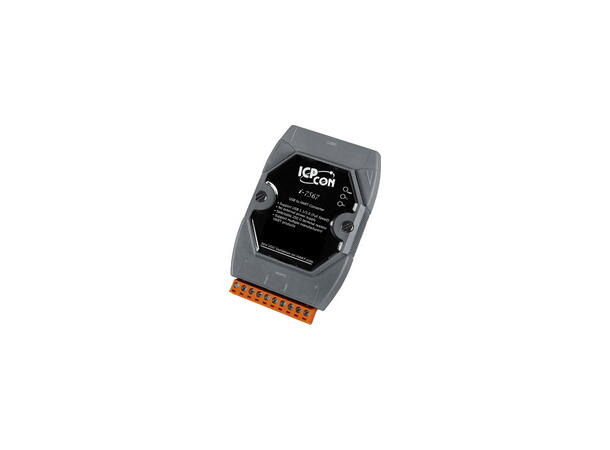

I-7567
Introduction: The I-7567 is a USB to HART converter that can function as either a HART master or HART slave. It allows users to connect HART devices to a PC via a virtual COM port, simplifying data collection and communication in HART networks. With support for both point-to-point and multi-drop modes, the I-7567 is ideal for development, testing, and integration of HART systems. Configuration and simulation tools are included for ease of use.
USB to HART Converter – ICP DAS
Key Features
- Dual Role: Operates as HART master or HART slave
- HART Protocol Support: Supports short/long frame, burst mode, point-to-point and multi-drop modes
- Device Capacity: Connects up to 15 HART slave devices
- Dual HART Masters: Allows two HART masters per channel
- Utility Software: Includes HC_Tool for configuration and HDS for simulation
- Plug & Play: USB-powered with automatic driver installation
- FDT Compatibility: Supports PACTware, FieldCare, and Siemens PDM
- OPC Server: Supports HART OPC Server from HART Communication Foundation
Specifications
- USB Interface: USB 1.1 and 2.0, Type B connector
- Virtual COM Settings: 1200 bps, odd parity, 8 data bits, 1 stop bit
- HART Channels: 1 channel, 2-pin screw terminal block
- Terminator Resistor: Selectable 250 O
- Isolation: 3000 VDC
- ESD Protection: 4 KV contact per terminal
- Power Supply: Powered via USB
- Power Consumption: Max 1.5 W
- LED Indicators: PWR, Tx (USB), Rx (HART)
- Installation: DIN-Rail or wall mounting
- Dimensions: 108 x 72 x 35 mm (H x W x D)
- Operating Temperature: -25°C to +75°C
- Storage Temperature: -30°C to +75°C
- Humidity: 5% to 95% RH, non-condensing
