69846

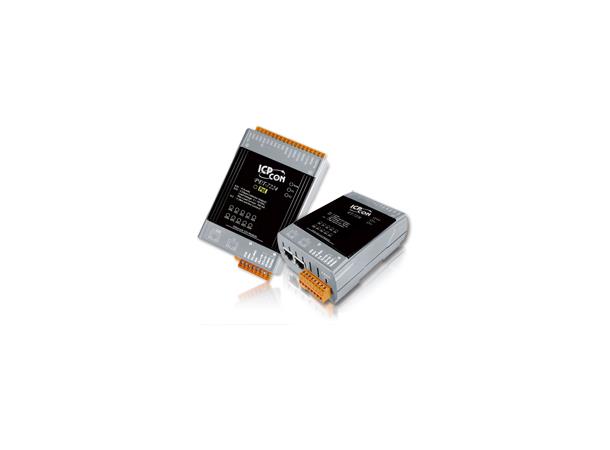

ICPDAS ET-7224 CR

AO: 4, DI: 5, DO: 5l

Tuotenumero 121232
TuotekuvausLiitetiedostot
Tuotekuvaus
  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • I/O Pair Connection
  • Built-in I/O
    • AO: 4 Channels
    • DI/Counter: 5 Channels
    • DO: 5 Channels

The ET-7024/PET-7024/ET-7224/PET-7224 is a multifunction module includes 4 channels analog output, 5 channels digital input and 5 channels digital output. It provides a variety of programmable analog output options (+/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA), and each analog output can be programmed to accept either current or voltage as output depending upon the position of corresponding jumper. The ET-7024/PET-7024/ET-7224/PET-7224 is fully RoHS compliant and provides 4 kV ESD protection as well as 2500 VDC intra-module isolation.

Liitetiedostot
