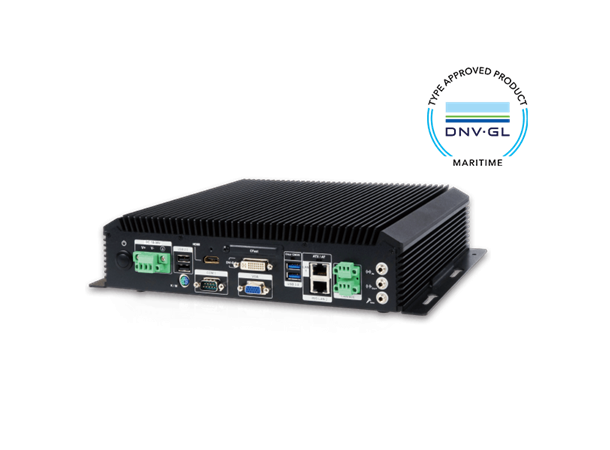

SBOX-100-QM87i-i5/4G-R10 Marine Computeri5-4400E/4GB ram/18-36VDC

Spec Item		Description
Form factor	SBC Form Factor	CPU: Intel® mobile Core™ i5-4400E (2.7 GHz, 37W) Chipset: Intel® QM87 System Memory: 2 x 204-pin DDR3 SO-DIMM slot (system max. 16 GB) Pre-installed 4 GB DDR3 SO-DIMM
System	Cooling method / System Fan	Fanless
System	Drive Bays	2 x 2.5” SATA 6Gb/s SSD bay with RAID 0/1 function
Indicator&Buttons	Indicators	Power (power on: green, power off: orange), storage (red, blinking), IPMI (blue)
I/O Interface	I/O Ports	1 x PS2 (KB/MS) 2 x USB3.0 2 x USB2.0 2 x RJ-45 with teaming support 1 x PCIe GbE by Intel® I217LM 1 x PCIe GbE by Intel® I210-AT (2 with 2 kV isolation) 1 x DB-9 (non-isolated) 4 x RS-232/422/485 (with 2.5 kV isolation) 2 x CAN-bus (with 2.5 kV isolation) 1 x VGA 1 x DVI-D 1 x HDMI 1 x Line-out, 1 x Line-in, 1 x Mic-in 2 x Antenna SMA hole (reserved)
Environment	Operating Temperature	-15°C ~ 55°C with air flow
Environment	Humidity	5% ~ 95%, non-condensing
Dimensions	Dimensions	290 x 75 x 225
Weight	Weight	4.08 kg / 6.03 kg
Color	Color	Black
Expansion Slots	Expansion Slots	2 x Full size

SBOX-100-QM87i-i5/4G-R10 Marine Computer i5-4400E/4GB ram/18-36VDC

Accessories

Alternatives

Articles

Number of articles found:

SBOX-100-QM87i-i5/4G-R10 Marine Computer

i5-4400E/4GB ram/18-36VDC

Product nr: 120510

Antall i kart: 100

Description
Support

Spec Item		Description
Form factor	SBC Form Factor	CPU: Intel® mobile Core™ i5-4400E (2.7 GHz, 37W) Chipset: Intel® QM87 System Memory: 2 x 204-pin DDR3 SO-DIMM slot (system max. 16 GB) Pre-installed 4 GB DDR3 SO-DIMM
System	Cooling method / System Fan	Fanless
System	Drive Bays	2 x 2.5” SATA 6Gb/s SSD bay with RAID 0/1 function
Indicator&Buttons	Indicators	Power (power on: green, power off: orange), storage (red, blinking), IPMI (blue)
I/O Interface	I/O Ports	1 x PS2 (KB/MS) 2 x USB3.0 2 x USB2.0 2 x RJ-45 with teaming support 1 x PCIe GbE by Intel® I217LM 1 x PCIe GbE by Intel® I210-AT (2 with 2 kV isolation) 1 x DB-9 (non-isolated) 4 x RS-232/422/485 (with 2.5 kV isolation) 2 x CAN-bus (with 2.5 kV isolation) 1 x VGA 1 x DVI-D 1 x HDMI 1 x Line-out, 1 x Line-in, 1 x Mic-in 2 x Antenna SMA hole (reserved)
Environment	Operating Temperature	-15°C ~ 55°C with air flow
Environment	Humidity	5% ~ 95%, non-condensing
Dimensions	Dimensions	290 x 75 x 225
Weight	Weight	4.08 kg / 6.03 kg
Color	Color	Black
Expansion Slots	Expansion Slots	2 x Full size
