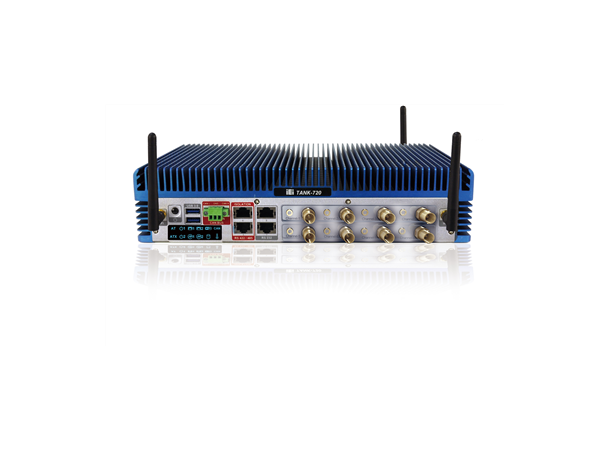

TANK-720-Q67-i5/2G-R21IEI/i5-2390T/2GB

Spec Item		Description
Form factor	SBC Form Factor	CPU Intel® Core™ i5-2xxT (above 2.7 GHz) Intel® Core™ i3-2xxT (above 2.5 GHz) Intel® Pentium® G6xxT (above 2.2 GHz) Chipset: Intel® Q67 System Memory: On-board DDR3 2 GB memory 1 x 204-pin DDR3 SO-DIMM (system max: 10 GB)
System	Cooling method / System Fan	Fanless
System	Drive Bays	1 x SATA 3Gb/s with 2.5"" HDD/SSD support 1 x SATA 6Gb/s with 2.5"" HDD/SSD support
I/O Interface	I/O Ports	2 x USB 3.0 4 x USB 2.0 Ethernet 2 x Combo (SFP Fiber/RJ-45) 1 x PCIe GbE by Intel® 82579 1 x PCIe GbE by Intel® 82583V Fiber:2 x Combo (SFP Fiber/RJ-45) COM Port 4 x RS-232 (DB-9) 2 x RS-232 (RJ-45, with isolation) 2 x RS-422/485 (RJ-45, with isolation) Digital I/O:-bit digital I/O, 4-bit input/4-bit output CAN-bus:1 x Phoenix terminal block Display:1 x VGA, 1 x HDMI Resolution VGA: Up to 2048 x 1536@75Hz HDMI: Up to 1920 x 1200@60Hz Audio:1 x Line-out, 1 x Mic-in Wireless:1 x 802.11a/b/g/n 3T3R (optional) Other:Optional 4-channel audio/video input PCIe Mini Card
Environment	Operating Temperature	-20°C ~50°C with air flow (SSD)
Environment	Humidity	5% ~ 95%, non-condensing
Dimensions	Dimensions	310 x 200 x 70
Weight	Weight	4.2 kg/6.9 kg
Color	Color	Blue C + Silver
Expansion Slots	Expansion Slots	PCIe Mini:3 x Full size (one co-lay mSATA)

TANK-720-Q67-i5/2G-R21 IEI/i5-2390T/2GB

Accessories

Alternatives

Articles

Number of articles found:

Teollisuustietokoneet

TANK-720-Q67-i5/2G-R21

IEI/i5-2390T/2GB

Product nr: 121360

TANK-720-Q67-i5/2G-R21 IEI/i5-2390T/2GB

Description

Spec Item		Description
Form factor	SBC Form Factor	CPU Intel® Core™ i5-2xxT (above 2.7 GHz) Intel® Core™ i3-2xxT (above 2.5 GHz) Intel® Pentium® G6xxT (above 2.2 GHz) Chipset: Intel® Q67 System Memory: On-board DDR3 2 GB memory 1 x 204-pin DDR3 SO-DIMM (system max: 10 GB)
System	Cooling method / System Fan	Fanless
System	Drive Bays	1 x SATA 3Gb/s with 2.5"" HDD/SSD support 1 x SATA 6Gb/s with 2.5"" HDD/SSD support
I/O Interface	I/O Ports	2 x USB 3.0 4 x USB 2.0 Ethernet 2 x Combo (SFP Fiber/RJ-45) 1 x PCIe GbE by Intel® 82579 1 x PCIe GbE by Intel® 82583V Fiber:2 x Combo (SFP Fiber/RJ-45) COM Port 4 x RS-232 (DB-9) 2 x RS-232 (RJ-45, with isolation) 2 x RS-422/485 (RJ-45, with isolation) Digital I/O:-bit digital I/O, 4-bit input/4-bit output CAN-bus:1 x Phoenix terminal block Display:1 x VGA, 1 x HDMI Resolution VGA: Up to 2048 x 1536@75Hz HDMI: Up to 1920 x 1200@60Hz Audio:1 x Line-out, 1 x Mic-in Wireless:1 x 802.11a/b/g/n 3T3R (optional) Other:Optional 4-channel audio/video input PCIe Mini Card
Environment	Operating Temperature	-20°C ~50°C with air flow (SSD)
Environment	Humidity	5% ~ 95%, non-condensing
Dimensions	Dimensions	310 x 200 x 70
Weight	Weight	4.2 kg/6.9 kg
Color	Color	Blue C + Silver
Expansion Slots	Expansion Slots	PCIe Mini:3 x Full size (one co-lay mSATA)
