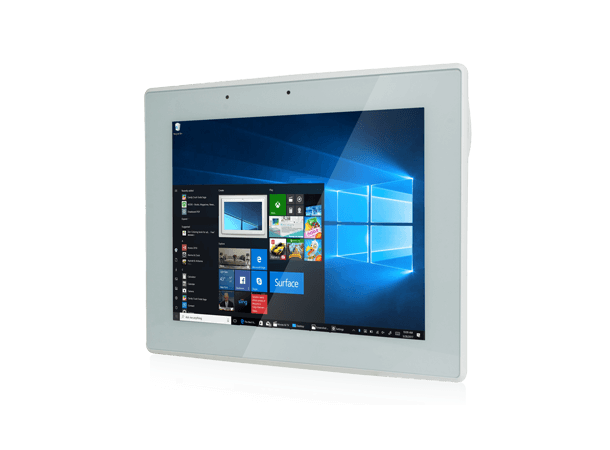

POC-17C-ULT3-i7/PC/4G-R10 17" Panel PC


Product nr: 124265
Spec ItemDescription
BluetoothV4.1 (M.2 2230 A-E key module)
Wi-FiIEEE 802.11 a/b/g/n/ac 2T2R module
Humidity10% to 95% (non-condensing)
IP LevelIP 65 compliant front panel
Operating ShockOperating Shock: 5G peak acceleration (11ms duration)
Non-Operating Shock: 15G peak acceleration (11ms duration)
Operating Temperature0°C~40°C
Operating Vibration1G
Storage Temperature-20°C~60°C
Function Key
Function Key1 x LCD on/off
1 x Brightness up
1 x Brightness down
1 x Volume up
1 x Volume down
1 x Touch lock button for cleaning

1 x Lock/Unlock OSD
1 x Power on/off
I/O Interface
Audio2 x 2W speaker
Expansion1 x PCIe Mini reserved
I/O Ports and Switches1 x RJ-11 for barcode module (1D/2D)
4 x USB 2.0 (2 for side)
4 x USB 3.0 port
1 x HDMI output
2 x GbE LAN port
1 x RS-232/422/485
1 x 12~28V DC jack
Backlight MTBF30000 (LED backlight)
Brightness (cd/m2)350
Contrast Ratio1000:1
LCD Color16.7M colors (RGB 6-bit)
Pixel Pitch (mm)0.264 (H) x 0.264 (V)
Resolution1280 (W) x 1024 (H)
Size17” (5:4)
Viewing Angle (H-V)170°(H) / 160°(V)
Other Features
Ambient Light SensorAmbient light sensor for panel brightness adjustment
Camera2-megapixel CMOS front-facing
Microphonedigital microphone
RFID ReaderOptional: Mifare 13.56 MHz card reader
System CoolingFanless
Physical Characteristics
ConstructionABS+PC plastic with anti-bacterial material
Dimensions (LxWxH) (mm)435 x 376 x 64.5
MountingWall, Stand and Arm VESA 100mm x 100mm / 75mm x 75mm
Input12V~28V DC input
Power adapter120W medical power adapter: Input: 100V~240V AC, Output: 19V DC
Cooling method / System FanFanless
CPUIntel® Skylake-ULT platform Core™ i5-6300U and Celeron® 3955U
Memory Max.Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs
(system max. 32GB)
Storage2 x 2.5” SATA 6Gb/s HDD bay
1 x mSATA reserved (M.2 interface)
Touch ControllerILITEK
Touch ScreenProjected capacitive type with USB interface
Surface Hardness: 6H
Weight5.8 Kg
LED Function
LED FunctionRFID indicator LED
